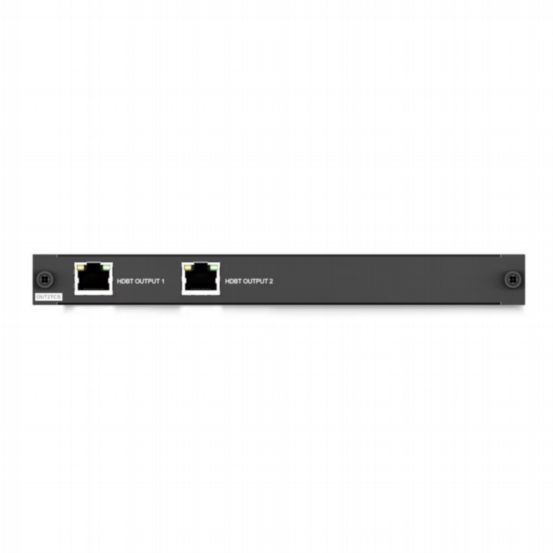

Blustream PRO-OUT2TCS 2-Way HDBaseT CSC Output Board - 4K HDR up to 70m

Blustream
Blustream PRO-OUT2TCS 2-Way HDBaseT CSC Output Board - 4K HDR up to 70m

BU-PRO-OUT2TCS

The Blustream PRO-OUT2TCS is a 2-way HDBaseT™ output board with Colour Space Conversion (CSC), designed for high-performance distribution of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) signals. It allows independent down-scaling for legacy displays and extends 1080p video up to 100m, making it ideal for professional AV installations using the Custom Pro Matrix hub.

Features & Benefits

  • 2 independent HDBaseT™ outputs for connection to compatible receivers
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Delivers 4K UHD 60Hz 4:4:4 up to 70m, 1080p up to 100m
  • Independent down-scaling of 4K video to 1080p or 4K 60Hz 4:2:0 for legacy displays
  • Supports all major HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio
  • PoC (Power over Cable) support to power connected HDBaseT™ receivers
  • Quick release card module design for simple installation into Custom Pro Matrix hub
  • HDCP 2.2 compliant for full compatibility with modern displays
  • Compatible with HEX100CS-RX receivers
  • Video Output: 2x HDBaseT™ RJ45; Compact card design integrates seamlessly into Custom Pro system
