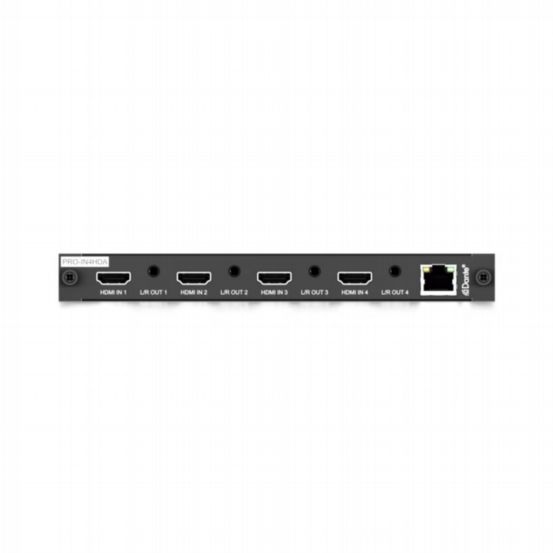

Blustream PRO-IN4HDA 4-Way HDMI 2.0 Input Board with Dante Audio & Analogue Breakout
BU-PRO-IN4HDA
The Blustream PRO-IN4HDA input board provides four independent HDMI 2.0 inputs, delivering 4K UHD 60Hz 4:4:4 video performance with full HDR and HDCP 2.2 support. Designed for the Custom Pro Matrix hub, it combines premium 4K video switching with professional-grade audio integration via Dante® networked audio and analogue audio breakout.
Features & Benefits
- 4 x HDMI 2.0 inputs, each independently routable to any video output card
- Supports HDMI 2.0 (18Gbps) specification, including HDR
- Supports up to 4K UHD 60Hz 4:4:4 resolutions
- 2ch analogue audio breakout (3.5mm stereo)
- 2ch Dante® audio breakout (PCM 2ch)
- 4 x Dante® audio inputs allow audio embedding onto the HDMI signals (PCM 2ch)
- Supports all major HDMI audio formats, including Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio
- Quick-release modular design for easy population and service in Custom Pro Matrix Hub
- Ideal for AV environments requiring integrated Dante® audio routing
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 4 x Analogue Left/Right (3.5mm stereo jacks)
- Audio Networking: 1 x Dante® LAN RJ45 port (supports audio I/O over IP)
- Card Dimensions (W x H x D): 170mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
