Blustream

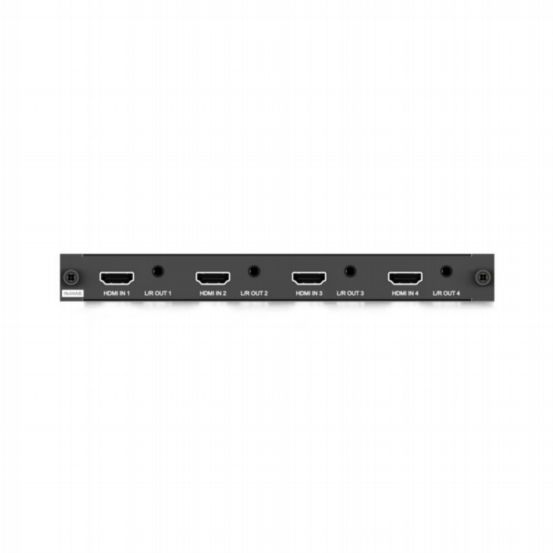

Blustream PRO-IN4HAB 4-Way HDMI 2.0 Input Board with Audio Breakout
BU-PRO-IN4HAB
The Blustream PRO-IN4HAB input board provides four independent HDMI 2.0 inputs, designed for seamless integration into the Custom Pro Matrix hub. Each HDMI source can be independently routed to any HDMI or HDBaseT™ output card, providing complete flexibility in large-scale video distribution systems.
Features & Benefits
- 4 x HDMI 2.0 inputs that can be independently routed to any output card
- Supports HDMI 2.0 18Gbps specification including HDR
- Delivers up to 4K UHD 60Hz 4:4:4 resolution
- Independent 2ch analogue audio breakout on each input (supports 2ch PCM)
- Compatible with Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio
- Quick-release card module fittings for simple installation and servicing in the Custom Pro Matrix Hub
- HDCP 2.2 compliant
- Ideal for high-performance AV matrix systems in residential, commercial, and corporate environments
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 4 x Analogue L/R (3.5mm stereo jacks)
- Card Dimensions (W x H x D): 170mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
