Blustream

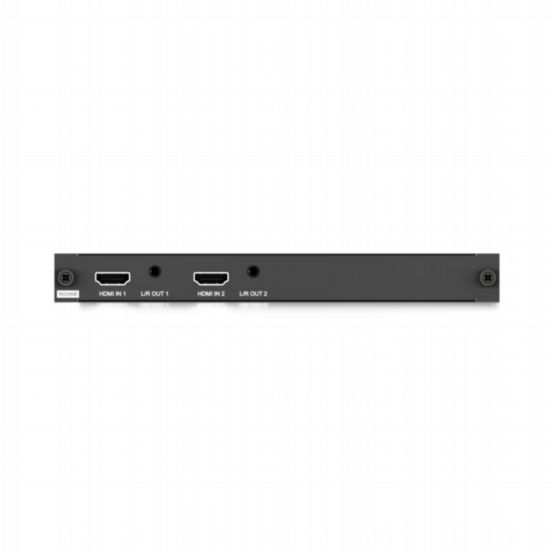

Blustream PRO-IN2HAB 2-Way HDMI Input Board - 18Gbps
BU-PRO-IN2HAB
The Blustream PRO-IN2HAB is a 2-way HDMI 2.0 input board designed for integration into the Custom Pro Matrix hub, providing HDCP 2.2 compliant 4K 60Hz 4:4:4 video distribution. Each input features independent analogue audio breakout for local audio integration, making it ideal for professional AV installations requiring high-quality HDMI routing.
Features & Benefits
- 2 x HDMI 2.0 inputs independently routable to output cards
- Supports full HDMI 2.0 18Gbps specification with HDR
- Delivers up to 4K UHD 60Hz 4:4:4 video
- Supports all major HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio
- Each HDMI input includes fixed-level 2-channel analogue audio breakout for integration with third-party audio systems (PCM)
- Quick release card module design allows easy installation in Custom Pro Matrix hub
- HDCP 2.2 compliant for modern display compatibility
- Video Input: 2 x HDMI Type A, 19-pin
- Audio Output: 2 x Analogue L/R (3.5mm stereo jack)
- Card Dimensions: 170mm x 22mm x 177mm; Including connections: 190mm x 22mm x 188mm
- Shipping Weight: 0.5kg
- Operating Temperature: 0°C to 40°C; Storage Temperature: -20°C to 60°C
