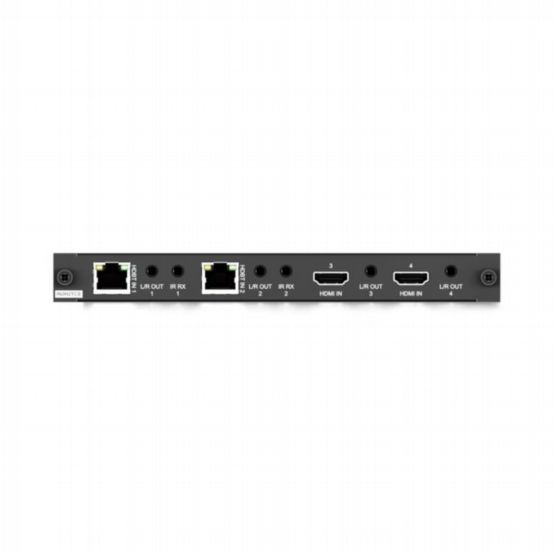

Blustream PRO-IN2H2TCS 4-Way HDMI 2.0 & HDBaseT CSC Input Board

Blustream
Blustream PRO-IN2H2TCS 4-Way HDMI 2.0 & HDBaseT CSC Input Board

BU-PRO-IN2H2TCS

The Blustream PRO-IN2H2TCS is a professional 4-way input board designed for the Custom Pro Matrix hub, combining 2 x HDMI and 2 x HDBaseT™ inputs for ultimate system flexibility. Using Colour Space Conversion (CSC) technology, the board supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) and HDR, with HDCP 2.2 compliance.

Features & Benefits

  • Independent input routing to any HDMI or HDBaseT™ output card
  • CSC (Colour Space Conversion) technology supporting HDMI 2.0 (18Gbps) with HDR
  • HDBaseT™ signal extension: Up to 100m @ 1080p
  • Supports all known HDMI audio formats, including: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
  • Fixed-level 2ch analogue audio breakout (per input) for external audio integration (supports 2ch PCM)
  • IR pass-through on HDBaseT™ inputs for remote source control
  • Quick-release modular design for easy installation in the Custom Pro Matrix Hub
  • Video Inputs: 2 x HDMI Type A, 19-pin, female
  • Audio Outputs: 4 x Analogue L/R (3.5mm stereo jacks)
  • IR Inputs: 2 x 3.5mm stereo jacks
  • Card Dimensions (W x H x D): 170mm x 22mm x 182mm
  • Dimensions (with connections): 190mm x 22mm x 188mm
