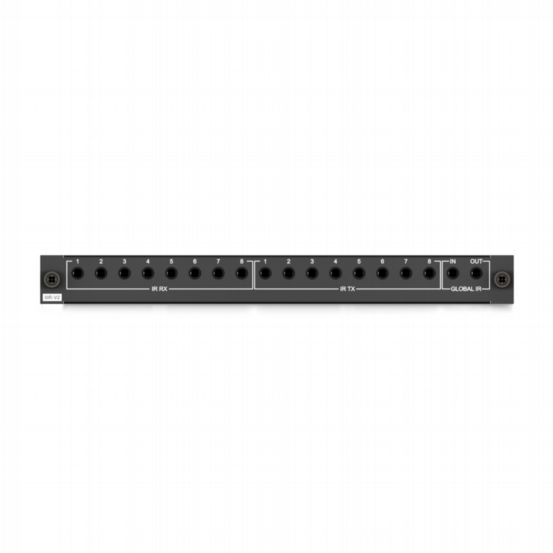

Blustream PRO-8IR-V2 Bi-Directional 5V & 12V IR Control Board
BU-PRO-8IR-V2
The PRO-8IR-V2 is a bi-directional IR routing board designed for the Custom Pro Matrix Hub, providing selectable 5V or 12V IR distribution for both local source control and HDBaseT™ receiver integration. The board includes 8 IR outputs and 8 IR inputs, and features quick release card fittings for simple installation.
Features & Benefits
- 8 IR outputs for routed control of local source hardware
- 8 IR inputs for distribution to compatible HDBaseT™ receivers
- Selectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)
- Quick release card module fittings for easy integration into the Custom Pro Matrix Hub
- IR Input Ports: 9 x 3.5mm stereo jack
- IR Output Ports: 9 x 3.5mm mono jack
- Card Dimensions (W x H x D): 202mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
