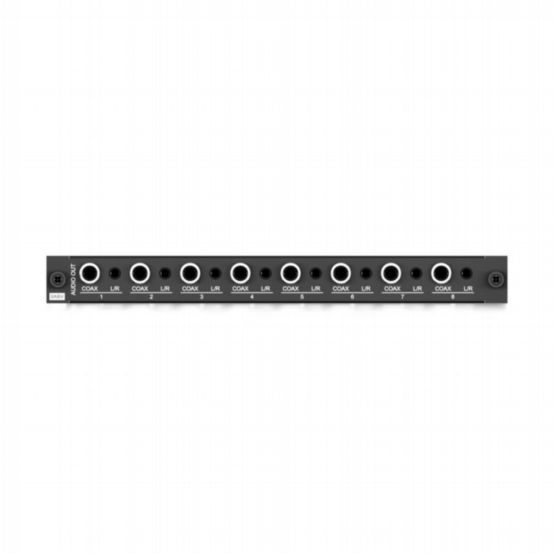

Blustream PRO-8ABV 8 Dual Output Audio Breakout Board with Variable Line Level Control

Blustream
Blustream PRO-8ABV 8 Dual Output Audio Breakout Board with Variable Line Level Control

BU-PRO-8ABV

The PRO-8ABV is an 8-zone audio breakout board designed for the Custom Pro Matrix Hub, offering simultaneous coaxial digital and variable line level analogue L/R audio outputs. The board features quick release card fittings for easy installation and flexible audio control.

Features & Benefits

  • Provides 8 HDMI audio breakouts corresponding to video zone outputs
  • Supports coaxial digital (S/PDIF) and analogue L/R audio outputs with variable line level control (supports 2ch PCM)
  • Quick release card module fittings for simple installation into the Custom Pro Matrix Hub
  • 8 x RCA (S/PDIF)
  • 8 x Analogue Left/Right audio (3.5mm stereo jack) with variable line level control
  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
