Blustream

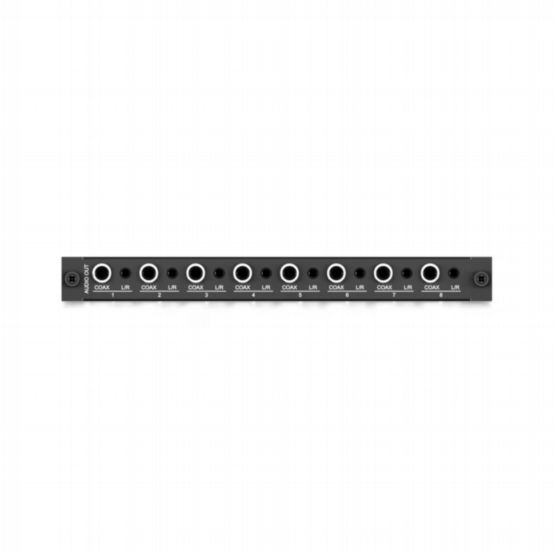

Blustream PRO-8AB 8 Dual Output Audio Breakout Board
BU-PRO-8AB
The PRO-8AB is an 8-zone audio breakout board designed for the Custom Pro Matrix Hub, offering simultaneous coaxial digital and analogue L/R audio outputs for each video zone. The board features quick release card fittings for easy installation and integration.
Features & Benefits
- Provides 8 HDMI audio breakouts corresponding to video zone outputs
- Supports coaxial digital (S/PDIF) and analogue L/R audio outputs (no DSP processing)
- Quick release card module fittings for simple installation into the Custom Pro Matrix Hub
- 8 x RCA (S/PDIF)
- 8 x 3.5mm stereo jack (L/R)
- Card Dimensions (W x H x D): 202mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
