Blustream

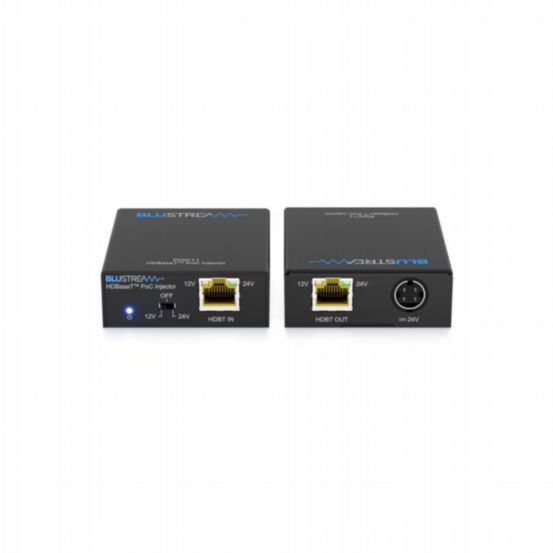

Blustream POC11 HDBaseT PoC Injector
BU-POC11
The POC11 HDBaseT™ PoC (Power over Cable) injector is designed to remotely power Blustream HDBaseT products. Installed inline within an HDBaseT transmission line, it enables a Blustream HDBaseT transmitter to be powered via selectable 12V or 24V DC, simplifying installations where local power is unavailable.
Features & Benefits
- In-line PoC injector to power Blustream HDBaseT transmitter products
- Compatible with all Blustream HDBaseT™ solutions (HDBaseT spec 1.0, 2.0, 3.0)
- Supports 18Gbps 4K video, multi-channel audio formats, and HDCP 2.2
- Cable reach up to 100m
- Selectable output voltage: 12V or 24V
- Video Input: 1 x HDBaseT™ RJ45
- Video Output: 1 x HDBaseT™ RJ45
- Voltage Selection: 1 x 3-step switch
- Dimensions (W x H x D): 65mm x 80mm x 24mm
- Power Supply: 24V/1.25A DC, 4-pin DIN
