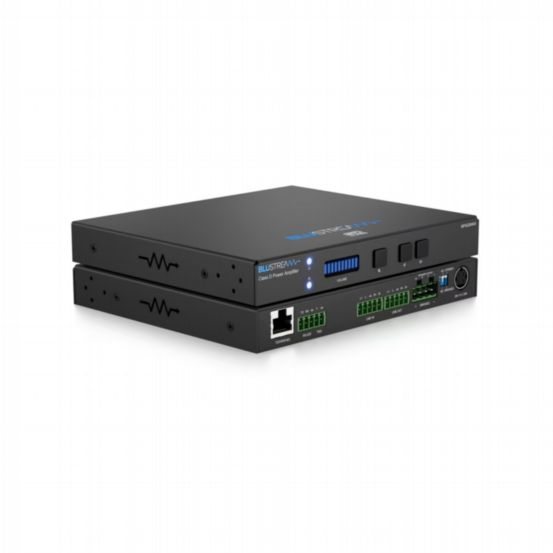

Blustream NPA20ANA Networked Analogue Audio Power Amplifier
BU-NPA20ANA
The NPA20ANA is a compact 2 x 10W (or 20W mono) networked amplifier with balanced/unbalanced analogue audio inputs, ideal for smaller zones such as bedrooms, en-suites, or meeting spaces. It supports PoE/PoE+ or local power, features 31-band DSP with EQ, audio delay for lip-sync, and daisy-chaining of up to 4 units for flexible multi-zone integration.
Features & Benefits
- 2 x 10W @ 4/8Ω stereo or 1 x 20W mono output
- Balanced/unbalanced 2-channel analogue audio input
- Powered via PoE/PoE+ or 24V DC (local supply)
- Daisy-chain feature for up to 4 amplifiers with master/slave control
- 31-band DSP with ±3dB/±10dB EQ and audio delay for lip-sync correction
- Local trigger input (0V / 5–12V) for automated power control
- Auto standby mode with audio signal sensing
- Control via front panel, RS-232, IP, or Web-GUI
- Audio Input: 1 x 5-pin Phoenix (balanced/unbalanced)
- Audio Output: 1 x 5-pin Phoenix (balanced/unbalanced)
- Speaker Output: 1 x 4-pin Phoenix (4/8Ω)
- RS-232: 1 x 3-pin Phoenix
- Trigger Input: 1 x 2-pin Phoenix
- Casing Dimensions (W x H x D): 169mm x 144mm x 22mm
- Shipping Weight: 1.2kg
- Operating Temperature: 0°C to 40°C; Storage: -20°C to 60°C
