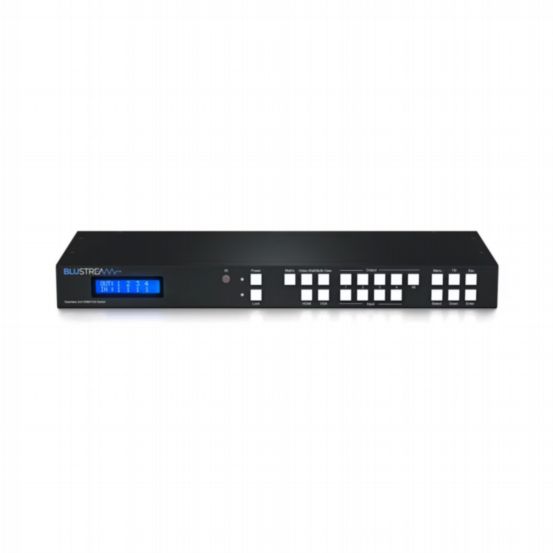

Blustream MX44VW 4x4 4K HDMI & VGA Video Wall Matrix
BU-MX44VW
The MX44VW is a 4x4 multi-purpose high-speed video processing system designed for matrix switching, video wall, and multi-view applications. It supports HDMI or VGA inputs with analogue L/R audio and offers flexible control via front-panel buttons, Blustream Matrix App, IR remote, RS-232, and TCP/IP.
Features & Benefits
- 3 operational modes: seamless matrix, video wall, multi-viewer
- 4 video inputs configurable as HDMI or VGA with associated L/R analogue audio
- Seamless video switching in matrix and video wall modes
- Video inputs support VGA-WUXGA up to 1920x1200 @60Hz, and 480i–4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
- HDMI output resolution fixed to 1080p @60Hz
- Supports 2ch PCM HDMI audio only
- Discreet IR routing, includes Blustream IR receivers and emitters
- Control via front panel, IR, RS-232, TCP/IP, and Blustream Matrix App
- 3rd-party control drivers for all major home automation systems
- Video Inputs: 4x HDMI Type A, 19-pin, female, locking + 4x VGA
- Video Outputs: 4x HDMI Type A, 19-pin, female, locking
- Audio Inputs: 4x Analogue L/R (3.5mm stereo jack)
- RS-232 Serial Port: DB-9, female
- TCP/IP Control: 1x RJ45, female
- IR Input Ports: 5x 3.5mm stereo jack
- IR Output Ports: 4x 3.5mm mono jack
- Mounting Kit: Included
- Casing Dimensions (WxHxD): 440mm x 45mm x 180mm
- Dimensions including connections: 440mm x 44mm x 187mm
