Blustream MX44KVM 4x4 USB KVM Matrix

Blustream

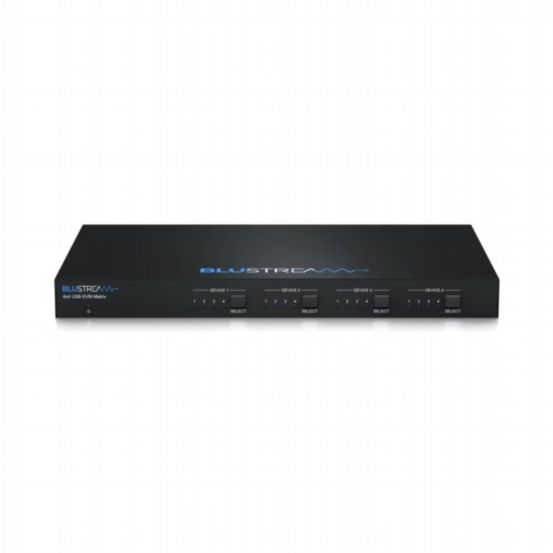

Blustream MX44KVM 4x4 USB KVM Matrix

BU-MX44KVM

The MX44KVM is a 4x4 USB 3.0 KVM Matrix designed for custom and commercial installations, enabling up to 4 USB peripheral devices to be shared between 4 host devices. It supports USB 3.0 plug-and-play connectivity with data transfer rates up to 5Gbps, while remaining backward compatible with USB 2.0 and 1.1.

Features & Benefits

  • 4x4 USB KVM matrix: 4 USB devices shared across 4 host devices
  • USB 3.0 connectivity, up to 5Gbps; backward compatible with USB 2.0/1.1
  • Plug-and-play; no drivers or software required
  • USB-A connections provide 5V / 900mA per port
  • 4 configurable GPIO ports for integration with third-party products
  • RS-232 loop-through for cascading commands to other Blustream devices
  • Assignable inputs and outputs for automated switching with Blustream matrices
  • Web interface for setup and control
  • Control via front panel, IR, RS-232, TCP/IP
  • USB Device Ports: 4 x USB Type A, female
  • USB Host Ports: 4 x USB Type B, female
  • RS-232 Serial Ports: 2 x 3-pin Phoenix connector
  • IR Input Port: 1 x 3.5mm stereo jack
  • TCP/IP Control: 1 x RJ45, female
  • GPIO Control: 1 x 5-pin Phoenix connector
  • Dimensions (WxDxH): 273mm x 168mm x 25mm
