Blustream

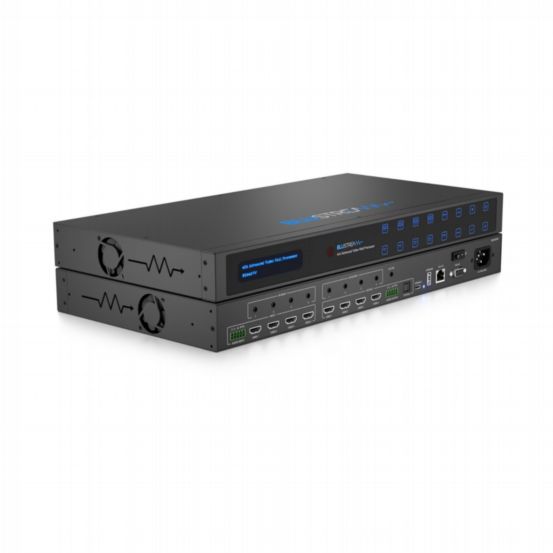

Blustream MX44AVW 4x4 Advanced Video Wall Processor
BU-MX44AVW
The MX44AVW is an advanced 4K HDMI 2.0 high-speed video processor designed for professional AV environments.It supports advanced video wall configurations, including panel overlap and rotation, and multiview layouts such as PIP, POP, PBP, dual, triple, and quad windows, with both pre-defined and customizable layouts.
Features & Benefits
- Advanced 4K HDMI 2.0 video processor supporting matrix, multiview, and video wall functions
- Video wall configuration supports individual overlap and rotation of panels
- Multiview mode supports PIP, POP, PBP, dual, triple, and quad-window layouts, pre-defined or custom
- Seamless video switching
- Supports HDMI 2.0 18Gbps 4K UHD 60Hz 4:4:4, including HDR
- Compatible with VGA-WUXGA and 480i-4K resolutions
- Supports all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
- HDMI audio breakout to analogue L/R and optical digital outputs concurrently
- IR routing and control
- Video Inputs: 4x HDMI Type A, 19-pin, female
- Video Outputs: 4x HDMI Type A, 19-pin
- Audio Inputs: 5-pin Phoenix connector (2ch balanced/unbalanced analogue audio)
- Audio Outputs: 1x Optical (S/PDIF), 5-pin Phoenix connector (2ch balanced/unbalanced analogue audio)
- Control Ports: 1x DB-9, female; 1x USB Type C (console)
- TCP/IP Control: 1x RJ45, female
- IR Inputs: 5x 3.5mm stereo jack
- IR Outputs: 4x 3.5mm mono jack
- Rack-Mountable: 1U rack height, rack ears included
- Casing Dimensions (WxDxH): 440mm x 240mm x 44mm
- Dimensions Including Connections (WxDxH): 440mm x 245mm x 44mm
