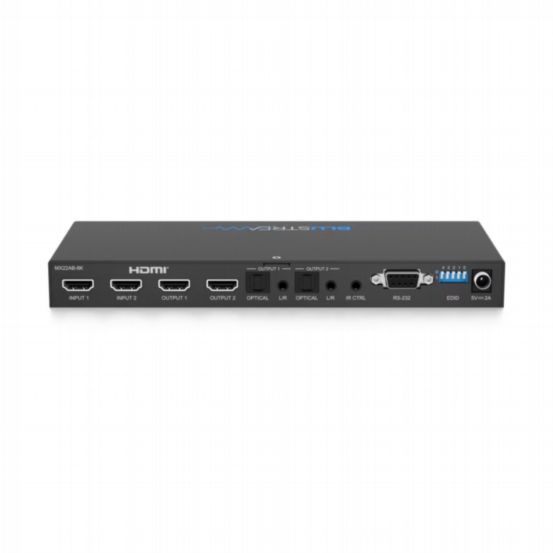

Blustream MX22AB-8K 2x2 8K HDMI 2.1 Matrix

BU-MX22AB-8K

The MX22AB-8K is a 2x2 HDMI 2.1 matrix for routing 2 HDMI 2.1 sources to 2 HDMI 2.1 displays, supporting 8K 60Hz and 4K 120Hz. It features auto/manual switching, analogue and optical audio breakout, HDCP 2.3 compliance, and advanced EDID management for source devices.

Features & Benefits

  • 2 HDMI 2.1 inputs, independently routable to 2 HDMI 2.1 outputs
  • Supports HDMI 2.1, HDR, 40Gbps bandwidth
  • Video resolutions: 8K 60Hz YCbCr 4:2:0, 8K 30Hz RGB/YCbCr 4:4:4, 4K 120Hz RGB/YCbCr 4:4:4
  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  • Audio breakout to analogue L/R and optical S/PDIF outputs concurrently
  • Auto switching via 5V hot plug / TMDS signal sensing
  • Manual switching via front panel, IR, or RS-232
  • 5V / 12V IR compatible
  • HDCP 2.3 compliant with advanced EDID management
  • Video Input: 2 x HDMI Type A, 19-pin
  • Video Output: 2 x HDMI Type A, 19-pin
  • Audio Output: 2 x Optical (S/PDIF), 2 x Analogue L/R (3.5mm stereo)
  • IR Input: 1 x 3.5mm stereo jack
  • RS-232: 1 x DB9, female
  • Dimensions (W x D x H): 218mm x 94mm x 23mm (including connections, feet removable)
  • Power Supply: 1 x 5V/2A DC
