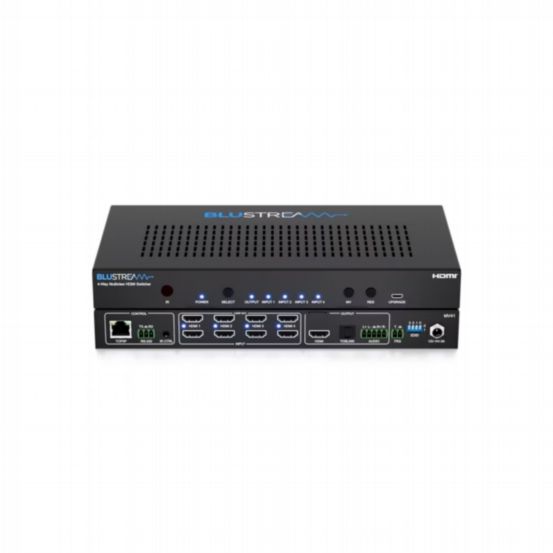

Blustream MV41 4-Way Multiview HDMI Switcher

Blustream
Blustream MV41 4-Way Multiview HDMI Switcher

BU-MV41

The Blustream MV41 is an advanced 4x1 HDMI multiview switcher designed for displaying up to four HDMI 2.0 sources simultaneously on a single display with seamless transitions, multiple layout options, and robust control capabilities. Ideal for broadcast, control rooms, retail signage, conference environments, and residential AV, it combines flexibility, simplicity, and professional-grade performance.

Features & Benefits

  • Advanced 4x HDMI input switch with multiview output for displaying up to four sources simultaneously on a single display
  • 4x HDMI loop outputs for connecting local displays or cascading signals to additional devices
  • Supports multiple viewing modes: PIP, PBP, POP, Dual, Triple, and Quad-window layouts with both preset and user-configurable options
  • Seamless switching for smooth transitions between layouts or sources
  • Supports HDMI 2.0 18Gbps specification including 4K UHD 60Hz 4:4:4 and HDR
  • Downscaling and HDR-to-SDR conversion on the HDMI multiview output for display compatibility
  • Comprehensive audio support including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Optical (S/PDIF) for digital audio
  • 5-pin Phoenix connector for analogue L/R audio (supports both balanced and unbalanced signals)
  • Full control flexibility: via front panel, IR, RS-232, TCP/IP, web GUI, and 12V trigger
  • Includes IR receiver and remote control for direct setup and use
  • Third-party control integration: drivers available for all major automation platforms
  • HDCP 2.3 compliant with advanced EDID management for optimal signal compatibility
  • Video Inputs: 4 x HDMI Type A (19-pin, female)
  • Video Outputs: 5 x HDMI Type A (19-pin, female)
  • Audio Outputs: 1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector (analogue L/R)
  • TCP/IP Control: 1 x RJ45 (female)
  • RS-232 Port: 1 x 3-pin Phoenix connector
  • 12V Trigger Port: 1 x 2-pin Phoenix connector
  • IR Input: 1 x 3.5mm stereo jack
  • Firmware Upgrade: 1 x Micro-USB UART port
  • Dimensions (W x D x H): 265mm x 152mm x 30mm
