Blustream

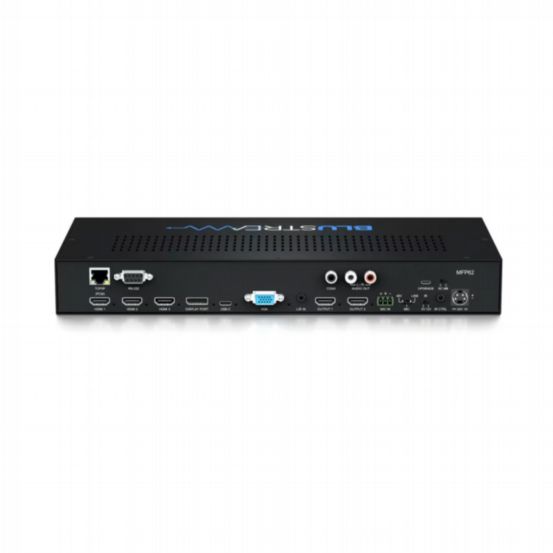

Blustream MFP62 6 Input & 2 Output Multi-Format Presentation Switcher
BU-MFP62
The MFP62 is an advanced 4K multi-format presentation switcher designed for boardrooms, classrooms, and hybrid working environments. It supports 3x HDMI, 1x USB-C, 1x DisplayPort™, and 1x VGA input with dual HDMI outputs, along with audio mixing, scaling, and embedding/de-embedding features.
Features & Benefits
- 6 input sources: 3x HDMI, 1x USB-C, 1x DisplayPort™, 1x VGA, independently routable to 2 HDMI outputs
- Supports HDMI 2.0 18Gbps, including HDR, 4K UHD 60Hz 4:4:4
- USB-C supports 4K UHD 60Hz 4:4:4, DP1.2, Alt mode
- DisplayPort supports 4K UHD 60Hz 4:4:4, DP1.2
- Video scaling on dual HDMI outputs
- Audio breakout to analogue L/R and Coaxial (S/PDIF) outputs concurrently
- MIC input with phantom power (48V/0.5mA) and support for balanced/unbalanced line-level audio
- Audio mixer with independent level adjustment and analogue audio embedding
- Web GUI for configuration and control
- Video Inputs: 3x HDMI Type A, 1x USB-C, 1x DisplayPort™, 1x VGA
- Video Outputs: 2x HDMI Type A
- Audio Inputs: 1x analogue L/R (3.5mm stereo jack)
- MIC Input: 1x 3-pin Phoenix connector
- Audio Outputs: 1x RCA S/PDIF, 2x RCA analogue L/R
- RS-232: 1x 9-pin connector
- TCP/IP: 1x RJ45
- IR Input: 1x 3.5mm stereo jack
- Firmware Upgrade: 1x Micro USB female
- Rack-Mountable: 1U rack height, rack ears included
- Casing Dimensions (W x H x D): 344mm x 44mm x 168mm (without feet)
