Blustream

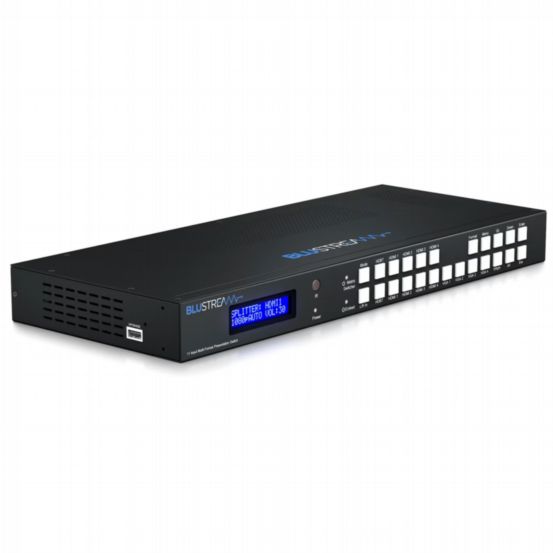

Blustream 11 Input 2 Output Multi-Format Presentation Switch
BU-MFP112
The Blustream MFP112 is a high-performance multi-format presentation switcher with built-in video scaling, audio embedding/de-embedding, advanced EDID management, and HDBaseT™ input/output. It supports two operation modes—dual-output splitter or independent matrix switching—making it ideal for commercial installations. With front-panel, IR, RS-232, and TCP/IP control, the MFP112 handles HDMI, HDBaseT™, VGA, and analogue video sources while delivering flexible audio routing, 4K video support, and long-distance HDBaseT™ distribution.
Features & Benefits
- 11 inputs: 4 HDMI, 1 HDBaseT™, 4 VGA, 1 Composite, 1 Component (YPbPr) and 2 outputs: 1 HDMI, 1 HDBaseT™
- Splitter mode: both outputs mirror the selected input; Matrix mode: outputs independently controlled
- HDMI output 1: HDBaseT™ input + HDMI 1-4 (up to 4K); HDBaseT™ output 2: all inputs with associated audio (HDBaseT™ distribution up to 100m, 4K up to 70m)
- Built-in video scaling: upscaling to 1080p and downscaling 4K to lower resolutions
- Supports standard video resolutions from VGA-WUXGA to 480i-4K
- Audio embedding: analogue L/R input can be embedded to HDMI/HDBaseT™ outputs; HDMI audio breakout to analogue L/R and coaxial digital outputs
- Bitstream passthrough of multichannel and object-based audio formats; volume control for all outputs
- PoH support to compatible Blustream transmitters/receivers; advanced EDID management; HDCP 1.4 compliant
- Front panel display for status; control via front panel, IR, RS-232, and TCP/IP; 3rd party drivers available
- Compact design: 438 x 45 x 235mm (including connections); shipping weight 1.5kg; 12V/5A DC power supply
