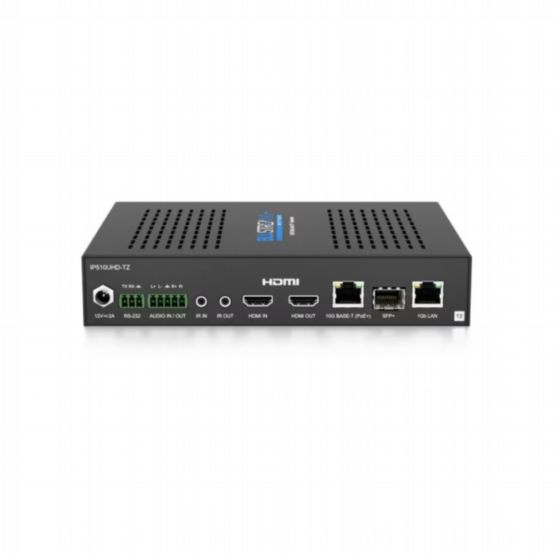

Blustream IP510UHD-TZ 4K 60Hz 4:4:4 SDVoE Simultaneous Transmitter via 10Gb

Blustream
Blustream IP510UHD-TZ 4K 60Hz 4:4:4 SDVoE Simultaneous Transmitter via 10Gb

BU-IP510UHD-TZ

The Blustream IP510UHD-TZ is a high-performance SDVoE transceiver designed for professional 4K video-over-IP systems. Operating as both an encoder (TX) and decoder (RX), it delivers uncompromised 4K 60Hz 4:4:4 video with zero latency over a 10Gb managed network. Supporting HDMI 2.0, HDR formats including Dolby Vision, and multi-channel HD audio, the IP510UHD-TZ offers a flexible, scalable solution for advanced AV applications such as video walls, multi-view displays, and matrix systems.

Features & Benefits

  • Advanced SDVoE 4K UHD video-over-IP with visually lossless compression and zero latency
  • HDMI 2.0 18Gbps specification supporting up to 4K 60Hz 4:4:4, 10/12-bit colour, and HDR including Dolby Vision
  • Functions as both encoder (TX) and decoder (RX) simultaneously from a single 10Gbps connection
  • Supports video scaling and single-frame seamless switching
  • Multi-view output for up to 16 independent sources on a single display
  • Video wall functionality supporting custom array sizes and layouts
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
  • Fixed signal routing for dedicated IR, RS-232, CEC, and USB 1.1 control pass-through
  • USB end-to-end / point-to-point pass-through (USB 1.1 spec)
  • Analogue L/R audio embedding and breakout (balanced and unbalanced)
  • 10/100/1000BaseT Ethernet pass-through for integrated network connectivity
  • Supports bi-directional 5V or 12V IR pass-through
  • Dual network options: 10Gbps copper or SFP+ fibre
  • PoE+ powered via compatible network switch (no PSU required when PoE+ is available)
  • Local 12V 2.5A power input available for non-PoE+ systems (PSU sold separately)
  • Fully interoperable with Blustream IP500UHD-TZ for flexible deployment
  • Operates in four modes: Matrix distribution, Video wall, Multiview, and One-to-one HDMI extension
  • Video input: 1 x HDMI Type A (female)
  • Video output: 1 x HDMI Type A (female)
  • Audio I/O: 1 x 5-pin Phoenix connector
  • Ethernet: 1 x 10GBaseT RJ45, 1 x SFP+ module, 1 x 1Gb LAN RJ45 pass-through
  • RS-232 port: 1 x 3-pin Phoenix connector
  • USB/KVM: 1 x USB-Type B (host), 2 x USB-Type A (device)
  • IR input: 1 x 3.5mm stereo jack
  • IR output: 1 x 3.5mm mono jack
  • Dimensions (W x D x H): 195mm x 153mm x 37mm
