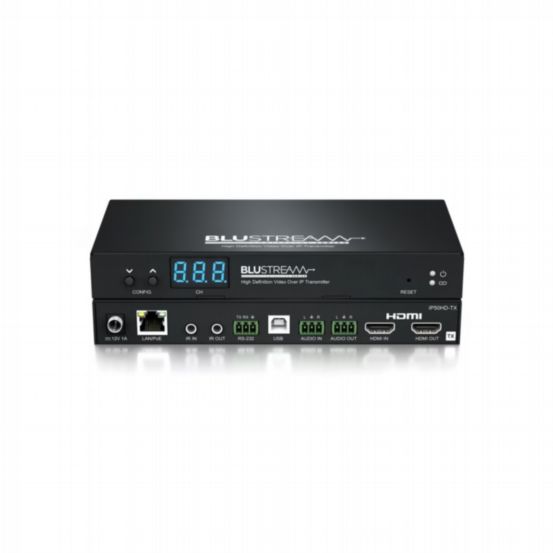

Blustream IP50HD-TX 1080p HD Video over IP Transmitter via 100Mbps Network
BU-IP50HD-TX
The IP50HD-TX is a high-definition HDMI transmitter designed for AV distribution over a 100Mbps network. Using H.265 compression, it delivers HDMI video, bi-directional IR, RS-232, and USB for KVM up to 100m over a single CAT cable. Ideal for both commercial and residential installations, the IP50HD-TX supports flexible configuration, HDMI loop-out, and PoE power options.
Features & Benefits
- Advanced HD video, control, and KVM over network infrastructure
- Extends HDMI up to 100m over a single CAT cable
- Supports unicast transmission over unmanaged networks
- Supports multicast transmission for larger managed networks
- Supports 1080p @ 60Hz video output
- HDMI loop-out for local display integration or cascading multiple devices
- PCM 2.0 channel audio
- Analogue L/R audio embedding and audio breakout (2ch PCM only)
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, and combined video/audio
- PoE capable (Power over Ethernet) or optional local 12V 1A DC power supply
- Matrix distribution (requires 100Mbps network switch)
- One-to-one HDMI extender (no network switch required)
- Video Input: 1 x HDMI Type A, 19-pin, female, locking
- Video Output: 1 x LAN RJ45, 1 x HDMI Type A, 19-pin, female, locking
- Audio Input: 1 x 3-pin Phoenix connector
- Audio Output: 1 x 3-pin Phoenix connector
- Ethernet Port: 1 x LAN RJ45
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- USB/KVM Host Port: 1 x USB Type-B
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Latency: 3 frames (<120ms, dependent on video compression, frame rate, and scaling)
- No latency on HDMI loop-out
- PoE Draw: 3.7W (typical), 4.0W (max load)
- Dimensions (W x D x H): 190mm x 95mm x 25mm
- Dimensions including connections: 190mm x 100mm x 25mm (without feet)
