Blustream

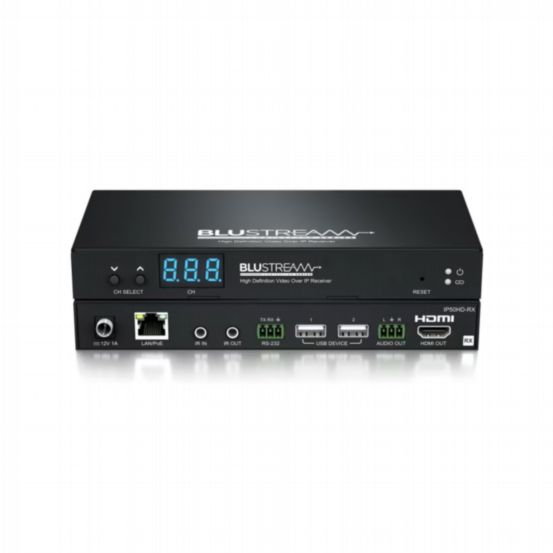

Blustream IP50HD-RX 1080p HD Video over IP Receiver via 100Mbps Network
BU-IP50HD-RX
The IP50HD-RX is a high-performance 1080p HDMI video receiver designed for distributing HD video, audio, and control signals over a standard 100Mbps network. Utilizing H.265 compression, this unit delivers HDMI video, bi-directional IR, RS-232, and USB for KVM up to 100m over a single CAT cable. Ideal for both commercial and residential installations, the IP50HD-RX supports flexible configuration and PoE power options.
Features & Benefits
- Advanced HD video, control, and KVM distribution over network infrastructure
- Extends HDMI up to 100m over a single CAT cable
- Supports unicast transmission over unmanaged networks
- Supports multicast transmission for larger managed networks
- In-built video scaler for displays with differing resolution capabilities (1080p max)
- Supports 1080p @ 60Hz video output
- Advanced signal management for independent routing of IR, RS-232, USB/KVM, and combined video/audio
- PoE capable (Power over Ethernet) or local 12V 1A power supply (if PoE unavailable)
- HDCP 1.4 compliant with advanced EDID management
- Matrix distribution (requires 100Mbps network switch)
- One-to-one HDMI extender (no network switch required)
- Video Input: 1 x LAN RJ45 connector
- Video Output: 1 x HDMI Type A, 19-pin, female, locking
- Audio Output: 1 x 3-pin Phoenix connector
- Ethernet Port: 1 x LAN RJ45 (video extension)
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- USB/KVM Ports: 2 x USB Type-A
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Latency: 3 frames (<120ms, dependent on compression, frame rate, and scaling)
- PoE Draw: 2.9W (typical), 3.2W (max load)
- Dimensions (W x D x H): 190mm x 95mm x 25mm
- Dimensions including connections: 190mm x 100mm x 25mm (without feet)
