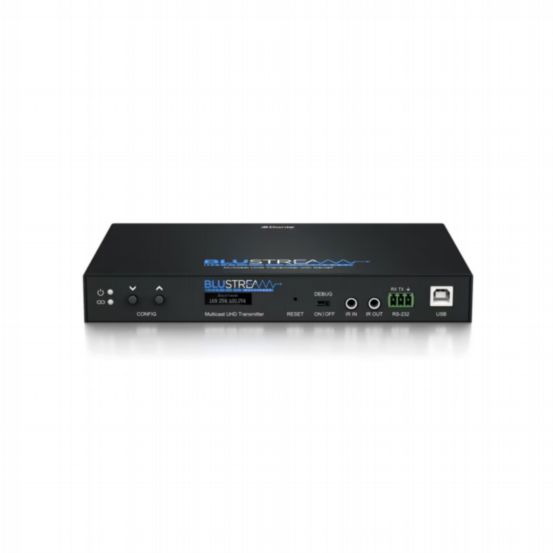

Blustream IP250UHD-TX UHD Video over IP Transmitter via 1Gb Managed Network with Dante

Blustream
Blustream IP250UHD-TX UHD Video over IP Transmitter via 1Gb Managed Network with Dante

BU-IP250UHD-TX

The Blustream IP250UHD-TX is a professional-grade UHD video over IP transmitter designed for high-performance 4K HDMI and Dante audio distribution via a 1Gb managed network. Fully compatible with the IP200 series, it enables visually lossless, virtually latency-free (1 frame) transmission of 4K HDR video, audio, and control signals up to 100m over standard CAT cable or greater distances via its integrated SFP fibre port.

Features & Benefits

  • Advanced UHD video distribution over a 1Gb managed network
  • Operates as a stand-alone system or alongside existing IP200UHD devices
  • Virtually unlimited system scalability
  • Extends HDMI and Dante up to 100m over a single CAT cable
  • Dual RJ45 network ports configurable for independent or combined HDMI and Dante distribution
  • SFP port for independent or combined HDMI and Dante distribution via fibre
  • Supports up to 4K HDR UHD video (3840×2160 @30Hz 4:4:4, 4096×2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • HDR support for 4K 30/25/24Hz sources
  • HDMI loop-out for local display or signal cascading
  • Built-in 2-channel Dante transmitter for audio breakout from HDMI or analogue input
  • Built-in 2-channel Dante receiver for audio embedding or breakout to analogue output
  • Analogue L/R audio embedding and breakout (balanced/unbalanced)
  • Supports all major HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
  • OLED front display for live system information and manual configuration
  • PoE (Power over Ethernet) operation or local 24V power option (PSU sold separately)
  • HDCP 2.2 compliant with advanced EDID management
  • Video Input: 1 x HDMI Type A, female
  • Video Output: 1 x LAN RJ45 connector, 1 x HDMI Type A, female (loop-out)
  • Latency: 1 frame (16–33ms depending on frame rate), no latency on HDMI loop-out
  • Audio Input: 1 x 5-pin Phoenix connector
  • Audio Output: 1 x 5-pin Phoenix connector
  • Ethernet Ports: 2 x LAN RJ45 connectors
  • Fibre Port: 1 x SFP connector (fibre module not included)
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B
  • IR Input: 1 x 3.5mm stereo jack
  • IR Output: 1 x 3.5mm mono jack
  • PoE Draw: 8.0W typical, 9.2W max load
  • Firmware Update: 1 x Micro-USB
