Blustream

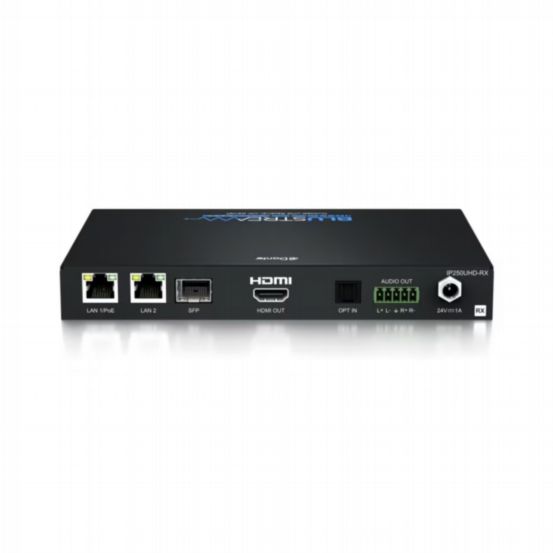

Blustream IP250UHD-RX UHD Video over IP Receiver via 1Gb Managed Network with Dante
BU-IP250UHD-RX
The IP250UHD-RX is a 4K HDCP 2.2 HDMI video scaling receiver designed for high-performance UHD Multicast distribution over a 1Gb Managed Network. Compatible with the IP200 platform, it uses visually lossless compression to deliver HDMI, Dante, bi-directional IR, RS-232, and USB/KVM signals up to 100m over standard CAT cable, or further using the built-in fibre SFP port. Dual RJ45 network ports allow independent or combined distribution of HDMI and Dante signals.
Features & Benefits
- Advanced UHD video over 1Gb Managed Network
- Compatible with existing IP200UHD products
- Virtually unlimited system size
- Extends HDMI and Dante up to 100m over CAT cable
- Dual RJ45 network ports configurable for HDMI and Dante distribution
- SFP fibre port for extended distances or combined HDMI/Dante distribution
- Video up-scaling and down-scaling
- Supports up to 4K 30Hz UHD video output
- Built-in 2ch Dante transmitter and receiver
- Optical (S/PDIF) audio input
- Analogue L/R audio outputs (balanced/unbalanced)
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
- Advanced independent signal routing for IR, RS-232, USB/KVM, audio, and video
- OLED front panel display for system information and manual configuration
- PoE compatible; local 24V 1A power supply supported
- HDCP 2.2 compliant with advanced EDID management
- Video Input: 1 x LAN RJ45
- Video Output: 1 x HDMI Type A, female
- Audio Input: 1 x Optical (S/PDIF)
- Audio Output: 1 x 5-pin Phoenix connector
- Ethernet Ports: 2 x LAN RJ45
- Fibre Port: 1 x SFP (module not supplied)
- RS-232: 1 x 3-pin Phoenix connector
- USB/KVM: 2 x USB Type A
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
