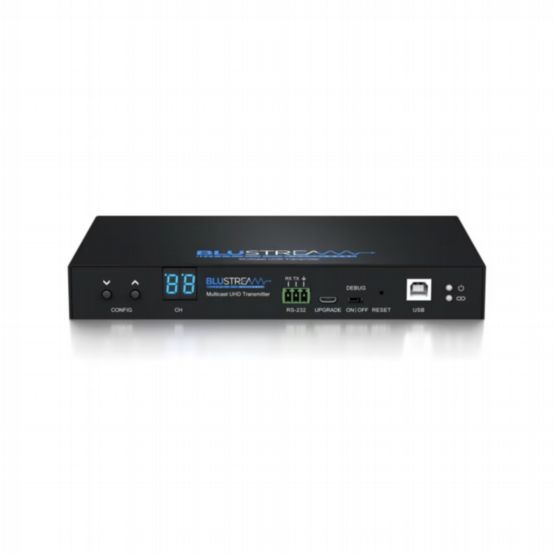

Blustream IP200UHD-TX UHD Video over IP Transmitter via 1Gb Managed Network

Blustream
Blustream IP200UHD-TX UHD Video over IP Transmitter via 1Gb Managed Network

BU-IP200UHD-TX

The Blustream IP200UHD-TX is a professional UHD video over IP transmitter designed for high-performance 4K HDMI distribution across a 1Gb managed network. Utilising visually lossless compression technology, it enables virtually latency-free (1 frame) transmission of HDMI video, bi-directional IR, RS-232, and USB/KVM control up to 100m over standard CAT cable.

Features & Benefits

  • Advanced UHD video distribution over 1Gb network
  • Virtually unlimited system scalability
  • Extends HDMI up to 100m over a single CAT cable
  • Video up-scaling and down-scaling support
  • Supports up to 4K @ 30Hz UHD video output
  • Supports all major HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
  • Bi-directional IR, RS-232, and USB/KVM signal transmission
  • PoE (Power over Ethernet) support for simple installation
  • HDCP 2.2 compliant with advanced EDID management
  • Analogue L/R audio embedding and breakout
  • Video Input: 1 x HDMI Type A, female
  • Video Output: 1 x LAN RJ45 connector
  • Latency: 1 Frame (16–33ms depending on frame rate)
  • Audio Input: 1 x 3.5mm L/R Analogue audio
  • Audio Output: 2 x RCA L/R Analogue audio
  • Ethernet Port: 1 x LAN RJ45 connector
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • USB/KVM Port: 1 x USB Type-B
  • IR Input: 1 x 3.5mm stereo jack
  • IR Output: 1 x 3.5mm mono jack
  • PoE Draw: 6.0W (typical), 7.2W (max load)
  • Dimensions (W x D x H): 190mm x 114mm x 25mm
