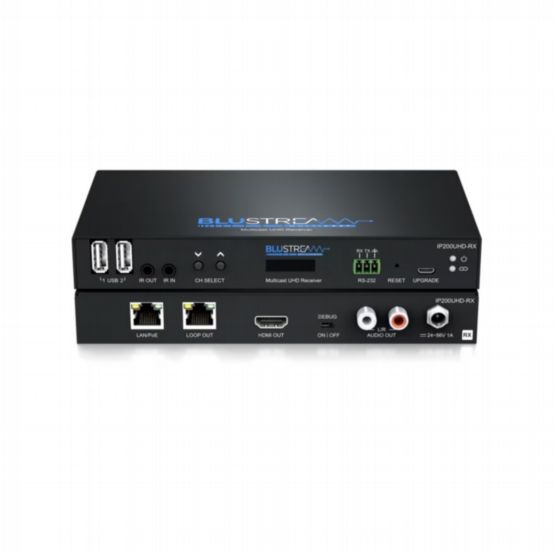

Blustream IP200UHD-RX UHD Video over IP Receiver via 1Gb Managed Network
BU-IP200UHD-RX
The Blustream IP200UHD-RX is a professional-grade 4K UHD receiver designed for flexible HDMI distribution over standard 1Gb network infrastructure. Part of Blustream’s UHD Multicast platform, it enables visually lossless, near zero-latency (1-frame) video transmission using advanced compression technology. The unit supports HDMI, bi-directional IR, RS-232, and USB/KVM up to 100m over a single CAT cable. With support for PoE, video scaling, and advanced signal management, the IP200UHD-RX is ideal for scalable matrix, video wall, or point-to-point applications in both residential and commercial AV environments.
Features & Benefits
- Advanced UHD video distribution over a 1Gb managed network
- Virtually unlimited system scalability
- Extends HDMI up to 100m over a single CAT cable
- Video up-scaling and down-scaling for mixed-resolution displays
- Supports up to 4K @ 30Hz UHD video output
- Supports Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio formats
- Independent routing of IR, RS-232, USB/KVM, audio, and video signals
- PoE (Power over Ethernet) enables power delivery via compatible network switches
- HDCP 2.2 compliant with advanced EDID management
- Analogue L/R audio breakout via RCA outputs
- LAN loop-out enables one-to-many HDMI extension
- Optional local power input (24–56V DC) when PoE is not available (sold separately)
- Ultra-low latency performance (1 frame / 16–33ms depending on frame rate)
- Video Input: 1 x LAN RJ45 connector
- Video Output: 1 x HDMI Type A, female
- Audio Output: 2 x RCA L/R analogue audio
- Ethernet Port: 1 x LAN RJ45 connector (video extension)
- RS-232 Port: 1 x 3-pin Phoenix connector
- USB/KVM: 2 x USB Type-A ports
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- PoE Power Draw: 7.0W typical, 8.3W max load
- Firmware Update: 1 x Micro-USB (MCU)
- Dimensions (W x D x H): 190mm x 114mm x 25mm
