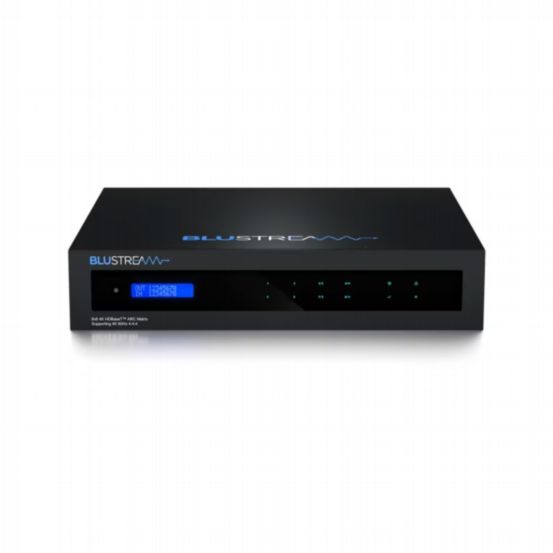

Blustream HMXL88ARC 8x8 HDBaseT CSC ARC Matrix
BU-HMXL88ARC
The HMXL88ARC is an 8x8 HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ matrix designed for professional AV installations. Using Colour Space Conversion (CSC) technology, it delivers 18Gbps HDMI over a single CAT cable up to 40m for 4K 60Hz 4:4:4 (1080p up to 70m).
Features & Benefits
- 8 HDMI inputs, independently routable to 8 HDBaseT™ outputs
- Output 1: simultaneous HDMI & HDBaseT™
- Video Smart Scaling on HDBaseT outputs for legacy displays
- Supports 4K 60Hz 4:4:4 up to 40m; 1080p up to 70m
- 8x HDMI audio breakout from sources
- 8x audio breakout from zone outputs
- 8x ARC from zone outputs
- 1x Optical & 1x Analogue audio input
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, Dolby Digital Plus
- Web interface module for control & configuration
- Bi-directional IR & RS-232 on all HDBaseT outputs
- Control via front panel, IR, RS-232, TCP/IP, iOS/Android app
- 24V PoC to power compatible RX70CS HDBaseT™ receivers
- Advanced EDID management, HDCP 2.2 compliant
- Video Input: 8x HDMI Type A, 19-pin, female
- Video Output: 1x HDMI Type A, 19-pin, female; 8x HDBaseT™ RJ45
- Audio Input: 1x Analogue L/R (3.5mm), 1x Optical S/PDIF
- Audio Output: 8x Analogue L/R (3.5mm), 8x Optical S/PDIF
- RS-232: 9x 3-pin Phoenix connector
- TCP/IP Control: 1x RJ45
- IR Input: 9x 3.5mm stereo jack
- IR Output: 9x 3.5mm mono jack
- Rack Mountable: 2U, rack ears included
- Casing Dimensions (WxDxH): 436mm x 400mm x 88mm (without feet)
