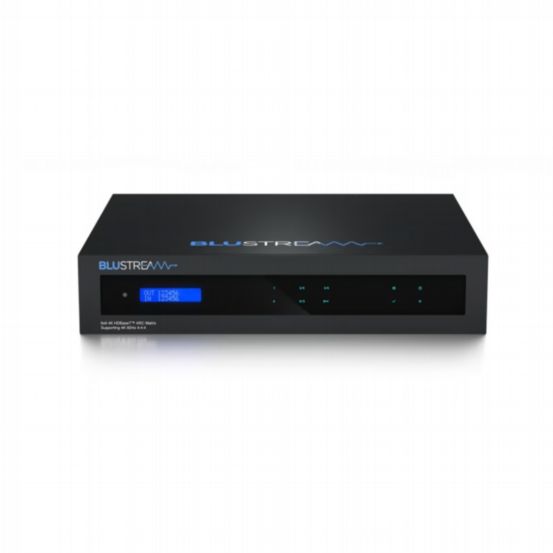

Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix

Blustream
Blustream HMXL66ARC 6x6 HDBaseT CSC ARC Matrix

BU-HMXL66ARC

The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ matrix featuring Colour Space Conversion (CSC) technology. It delivers HDMI 18Gbps with HDR over distances up to 40m (4K) or 70m (1080p) and provides advanced audio integration via a 20x6 audio matrix for full routing and embedding of source and display audio.

Features & Benefits

  • 6 HDMI inputs independently routable to 6 HDBaseT™ outputs
  • Output 1: simultaneous HDMI and HDBaseT™ output
  • Video Smart Scaling: allows displays that only support lower resolutions to receive 4K content while maintaining full 4K UHD on compatible displays
  • Supports 4K 60Hz 4:4:4 UHD up to 40m; 1080p up to 70m
  • 6x HDMI source audio breakouts
  • 6x zone output audio breakouts
  • 6x ARC from zone outputs
  • 1x optical input, 1x analogue input
  • Supports all HDMI audio formats including Dolby TrueHD, Atmos, Dolby Digital Plus, DTS-HD Master Audio
  • Bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Control via front panel, IR, iOS/Android app, RS-232, TCP/IP
  • PoC (24V) to power RX70CS receivers
  • Video Inputs: 6x HDMI Type A, 19-pin, female
  • Video Outputs: 1x HDMI Type A, 19-pin, female; 6x HDBaseT™ RJ45 (with RX70CS receivers)
  • Audio Inputs: 1x analogue L/R (3.5mm), 1x optical (S/PDIF)
  • Audio Outputs: 6x analogue L/R (3.5mm), 6x optical (S/PDIF)
  • RS-232 Ports: 7x 3-pin Phoenix
  • TCP/IP Control: 1x RJ45
  • IR Inputs: 7x 3.5mm stereo jack
  • IR Outputs: 7x 3.5mm mono jack
  • Rack-Mountable: 2U height, rack ears included
  • Casing Dimensions (W x D x H): 436mm x 400mm x 88mm (without feet)
