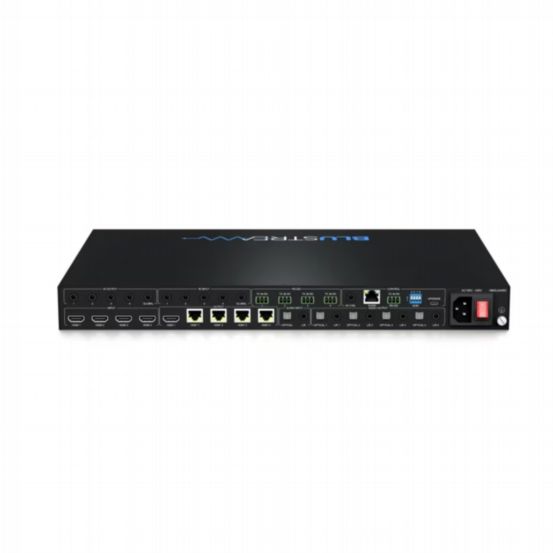

Blustream HMXL44ARC-KIT 4x4 HDBaseT AV Matrix Kit

BU-HMXL44ARC-KIT

The HMXL44ARC-KIT is a 4x4 HDMI 2.0 4K60Hz 4:4:4 HDCP 2.2 matrix designed for professional AV installations. It utilises HDBaseT™ technology with Colour Space Conversion (CSC) to deliver HDMI, bi-directional IR, and PoC over a single CAT cable, supporting up to 70m at 1080p and 40m for 4K 60Hz 4:4:4.

Features & Benefits

  • HDBaseT™ technology for distribution of video, audio, IR, and PoC over a single CAT cable
  • CSC support for HDMI 2.0 18Gbps including HDR
  • 4 HDMI inputs independently routable to 4 HDBaseT™ outputs
  • Output 1 supports simultaneous HDMI + HDBaseT output
  • Video Smart Scaling allows lower-resolution displays to receive compatible 4K video while preserving full resolution on others
  • Supports 4K60Hz 4:4:4 up to 40m and 1080p up to 70m
  • Supports all HDMI audio formats: Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
  • Bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Control via front panel, IR, iOS/Android app, RS-232, TCP/IP
  • Supports PoC to power compatible HDBaseT receivers
  • Web interface for configuration and monitoring
  • Advanced EDID management and HDCP 2.2 compliant
  • Video Inputs: 4x HDMI Type A, 19-pin, female
  • Video Outputs: 1x HDMI Type A, 19-pin, female + 4x HDBaseT™ RJ45
  • Audio Outputs: 1x Analogue L/R (3.5mm), 1x Optical (S/PDIF); 4x Analogue L/R (3.5mm), 4x Optical (S/PDIF)
  • RS-232 Ports: 5x 3-pin Phoenix
  • TCP/IP Control Port: 1x RJ45, female
  • IR Input Ports: 5x 3.5mm stereo jack
  • IR Output Ports: 4x 3.5mm mono jack
  • Rack-Mountable: 1U, rack ears included
  • Dimensions (WxDxH): 436 x 300 x 44 mm
