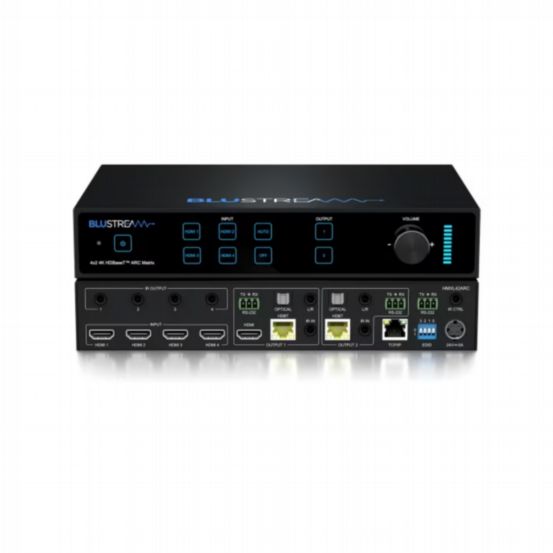

Blustream HMXL42ARC-KIT 4x2 HDBaseT Matrix Kit

Blustream
Blustream HMXL42ARC-KIT 4x2 HDBaseT Matrix Kit

BU-HMXL42ARC-KIT

The HMXL42ARC-KIT is a professional 4x2 HDMI 2.0 4K60Hz 4:4:4 HDCP 2.2 matrix kit designed for custom AV installations. It leverages HDBaseT™ technology and Colour Space Conversion (CSC) to deliver HDMI video, bi-directional IR, and Power over Cable (PoC) up to 70m over a single CAT cable.

Features & Benefits

  • Advanced HDBaseT™ technology for video, audio, and control over a single CAT cable
  • Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps, 4K60Hz 4:4:4, and HDR
  • 4 HDMI inputs independently routable to 2 HDBaseT™ outputs
  • Output 1 supports simultaneous HDMI + HDBaseT output
  • Video Smart Scaling on HDBaseT outputs allows lower-resolution displays to receive scaled 4K content while preserving maximum UHD quality on other outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m; extends 1080p HDMI up to 70m
  • Supports standard video resolutions from VGA to 4K UHD
  • Full HDMI audio support including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
  • 8x2 audio matrix independently controllable from video
  • 4x audio breakout from HDMI sources
  • 2x audio breakout from zone outputs
  • 2x ARC from zone outputs
  • Audio breakout provides analogue L/R and optical (S/PDIF) outputs concurrently with line-level volume control on analogue outputs
  • Audio breakout allows selectable source from zone audio or ARC via HDMI/optical ARC
  • Web interface for full configuration and control
  • Bi-directional IR support on all HDBaseT™ outputs
  • PoC to power RX70CS HDBaseT™ receivers
  • Third-party control drivers available for major automation platforms
  • Supplied with 2 x RX70CS HDBaseT™ receivers
  • Video Inputs: 4 x HDMI Type A (19-pin, female)
  • Video Outputs: 2 x HDBaseT™ RJ45, 1 x HDMI simultaneous output on Output 1
  • Audio Outputs: Analogue L/R (3.5mm), Optical S/PDIF
  • Control: Web GUI, RS-232, IR, TCP/IP compatible with 3rd party automation systems
  • Supported Video: 4K60Hz 4:4:4, 1080p, HDR, standard resolutions VGA-WUXGA and 480i-4K
  • Supported Audio: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X, PCM
  • Max HDBaseT™ Distance: 40m for 4K60Hz 4:4:4, 70m for 1080p HDMI
  • Power Supply: Internal (PoC capable for RX70CS receivers)
