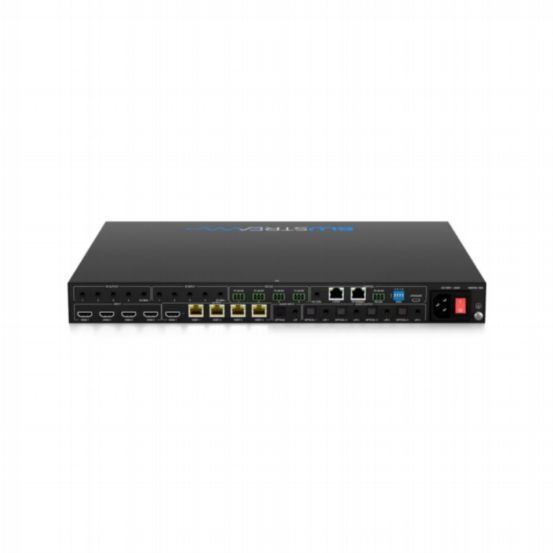

Blustream HMX44-18G-KIT 4x4 HDBaseT3 ARC Matrix
BU-HMX44-18G-KIT
The HMX44-18G-KIT is a high-performance 4x4 HDMI 2.0 4K60Hz 4:4:4 matrix designed for professional and custom AV installations. It utilises HDBaseT3™ technology to deliver uncompressed HDMI video, bi-directional IR, RS-232, ARC, 1Gb Ethernet, and PoC over a single CAT6A cable up to 100m. This matrix supports HDR10, HDR10+, and Dolby Vision, providing premium image quality for critical viewing environments.
Features & Benefits
- Uncompressed, unconverted HDMI over HDBaseT3™ distribution of 4K60Hz 4:4:4 UHD video
- Supports HDMI 2.0 18Gbps, HDR10/10+, and Dolby Vision
- 4 HDMI inputs independently routable to 4 HDBaseT™ outputs
- Output 1 supports simultaneous HDMI + HDBaseT output
- Supports distribution of uncompressed HDMI video up to 100m over CAT6A
- 4x audio breakout from HDMI inputs
- 4x audio breakout from zone outputs
- 4x audio return from zone outputs
- 1x optical & 1x analogue audio input
- Supports all HDMI audio formats: Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Integrated 1Gb Ethernet switch when used with RX18G receivers
- Bi-directional IR and RS-232 support on all HDBaseT™ outputs
- Control via front panel, IR, iOS/Android app, RS-232, TCP/IP
- PoC to power supplied RX18G receivers
- Supplied with 4 x RX18G HDBaseT™ receivers
- Video Inputs: 4 x HDMI Type A, 19-pin, female
- Video Outputs: 1 x HDMI Type A, 19-pin, female + 4 x HDBaseT™ RJ45
- Audio Inputs: 1 x Analogue L/R (3.5mm), 1 x Optical (S/PDIF)
- Audio Outputs: 4 x Analogue L/R (3.5mm), 4 x Optical (S/PDIF)
- RS-232 Ports: 5 x 3-pin Phoenix
- TCP/IP Control Port: 1 x RJ45
- Ethernet Passthrough Port: 1 x RJ45
- IR Input Ports: 6 x 3.5mm stereo jack
- IR Output Ports: 5 x 3.5mm mono jack
- Firmware Upgrade: 1 x Micro USB, female
- Rack Mountable: 1U, rack ears included
- Dimensions (WxHxD): 436mm x 360mm x 44mm (without feet)
