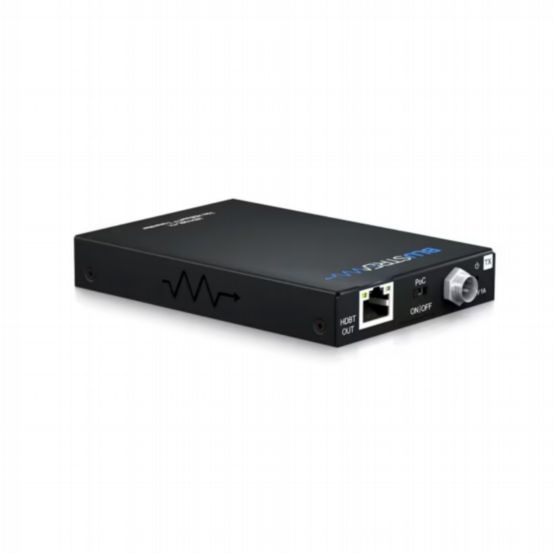

Blustream HEX70SL-TX Slimline HDBaseT Transmitter - 70m
BU-HEX70SL-TX
The Blustream HEX70SL-TX is a 4K Slimline HDBaseT™ Transmitter designed for high-performance AV distribution. Delivering uncompressed HDMI video and audio up to 70m at 1080p or 40m at 4K over a single CAT cable, it provides exceptional performance in a compact form factor. With bi-directional IR, PoC (Power over Cable), and advanced EDID management, the HEX70SL-TX ensures maximum compatibility and reliable signal transmission for both residential and commercial applications.
Features & Benefits
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Compact slimline design ideal for space-constrained installations
- Extends HDMI 1080p up to 70m and 4K UHD up to 40m over a single CAT cable
- Supports video resolutions up to 3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0
- Supports all industry-standard video formats including VGA–WUXGA and 480i–4K
- Supports all major HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
- Bi-directional IR pass-through for seamless control
- Supports bi-directional PoC (Power over Cable) to power or be powered from a compatible receiver (power supply not included)
- Smart EDID management automatically limits EDID within HDBaseT™ specification for enhanced compatibility
- HDCP 2.2 compliant
- Video Input: 1 x HDMI Type A (19-pin, female)
- Video Output: 1 x HDBaseT™ RJ45 connector
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- EDID: Pin hole button
- Power Supply: 12V/1A DC
- Dimensions: 106mm x 73mm x 16mm (LxWxH)
