Blustream

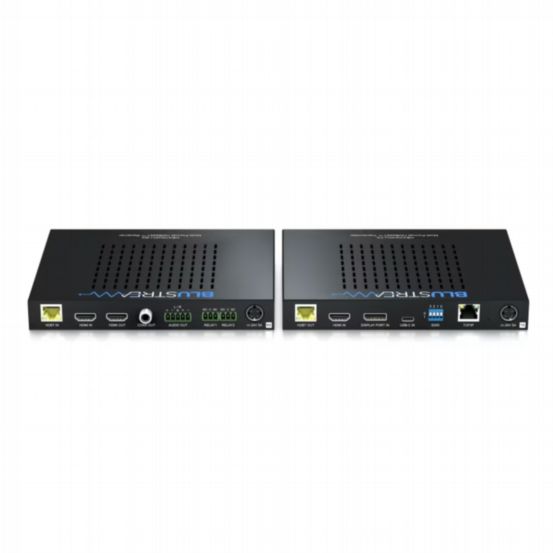

Blustream Multi-Format HDBaseT™ CSC Extender Set – 70m
BU-HEX70HDU-KIT
The Blustream HEX70HDU-KIT is an advanced multi-format HDBaseT™ extender set designed to deliver industry-leading HDMI 2.0 performance with support for HDMI, USB-C and DisplayPort signals over a single CAT cable. Utilising Colour Space Conversion (CSC) technology, it supports full 18Gbps bandwidth for 4K UHD at 60Hz 4:4:4 up to 40 metres, with extension of 1080p signals up to 70 metres. Engineered for professional AV environments, the system offers enhanced flexibility with a local HDMI input at the receiver, audio breakout, bi-directional IR and RS-232 pass-through, and advanced EDID and HDCP management. With control via front panel, IR, RS-232, TCP/IP and an integrated web interface, the HEX70HDU-KIT provides a powerful, feature-rich solution for complex multi-source installations.
Features & Benefits
- Multi-format HDBaseT™ extender set supporting HDMI, USB-C and DisplayPort signals
- Supports HDMI 2.0 18Gbps with 4K UHD at 60Hz 4:4:4 up to 40 m
- Extends HDMI 1080p video up to 70 m over a single CAT cable
- Advanced Colour Space Conversion (CSC) with HDR support
- Transmitter inputs include HDMI, USB-C and DisplayPort with auto or manual source selection
- Local HDMI input on receiver for connection of a source at the display location
- Supports USB-C video up to 4K UHD 60Hz and DisplayPort up to 4K UHD 60Hz
- Audio breakout to analogue L/R and coaxial digital (S/PDIF) outputs
- Bi-directional PoC to power extenders from either end
- Control via front panel, IR, RS-232, TCP/IP and web interface with advanced EDID and HDCP management
