Blustream

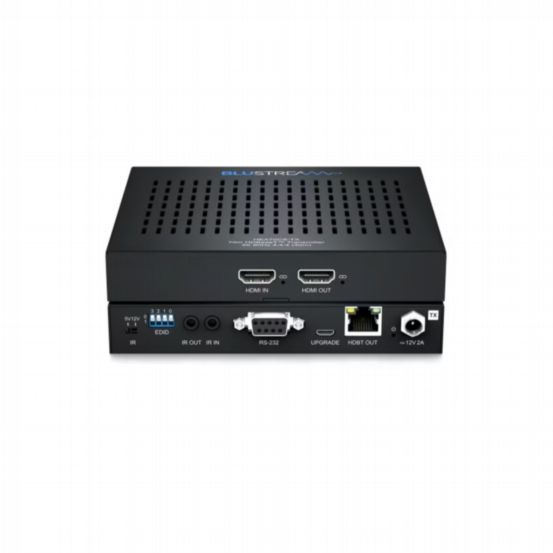

Blustream HEX70CS-KIT HDBaseT CSC Extender Set - 70m
BU-HEX70CS-TX
The HEX70CS-TX is the HDBaseT™ transmitter component of the HEX70CS-KIT, offering HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2 and Colour Space Conversion (CSC). It extends HDMI, bi-directional IR, RS-232, and PoC (Power over Cable) to a compatible receiver or matrix. The transmitter includes an HDMI loop-out for local display integration or cascading to multiple devices.
Features & Benefits
- HDBaseT™ technology for distribution of video, audio, and control over a single CAT cable
- CSC supports HDMI 2.0 18Gbps including HDR
- Supports 4K 60Hz 4:4:4 UHD video up to 40m, 1080p up to 70m
- Supports VGA–WUXGA and 480i–4K resolutions
- HDMI loop-out for cascading or local displays
- Supports all HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio
- Bi-directional IR and RS-232 pass-through, with switchable 5V/12V IR support
- Video down-conversion for compatibility with lower-resolution displays
- Power Supply: 12V/2A DC, screw type connector
- Power Consumption: 12.7W
- Transmitter Dimensions: 143 x 134 x 22mm (without connections), 143 x 141 x 22mm (with connections)
- Receiver Dimensions: 113 x 124 x 22mm (without connections), 113 x 138 x 22mm (with connections)
