Blustream

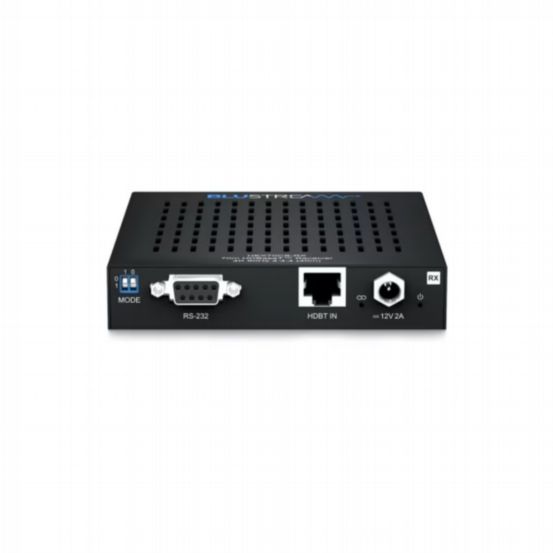

Blustream HEX70CS-RX 70m HDBaseT CSC Receiver
BU-HEX70CS-RX
The HEX70CS-RX is a HDBaseT™ CSC receiver supporting HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) and HDCP 2.2. Designed for professional installations, it extends HDMI, bi-directional IR, and RS-232 up to 70m (1080p) or 40m (4K) over a single CAT cable.
It provides simultaneous analogue stereo and digital coaxial audio breakout and supports advanced Colour Space Conversion (CSC) and video down conversion.
Features & Benefits
- HDBaseT™ technology for long-distance video, audio, and control distribution
- Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps including HDR
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- Supports VGA–WUXGA and 480i–4K resolutions
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- HDMI re-clocking for HDCP, compatibility, and handshake stability
- HDMI audio breakout to analogue L/R and coaxial digital outputs simultaneously
- Bi-directional RS-232 and IR pass-through
- Video Input: 1 x HDBaseT™ RJ45
- Video Output: 1 x HDMI Type A, female
- Audio Output: 1 x RCA (SPDIF) & 2 x Analogue RCA (L/R)
- RS-232: 1 x DB-9 female
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Power Supply: 12V/2A DC, screw type connector
- Power Consumption: 12.7W
- Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections) / 143 x 141 x 22mm (with connections)
- Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections) / 113 x 138 x 22mm (with connections)
