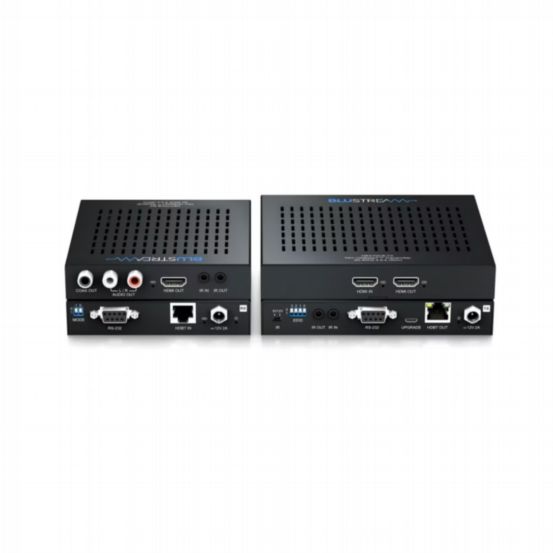

Blustream HEX70CS-KIT HDBaseT CSC Extender Set - 70m

Blustream
Blustream HEX70CS-KIT HDBaseT CSC Extender Set - 70m

BU-HEX70CS-KIT

The HEX70CS-KIT is a high-performance HDBaseT™ CSC extender set designed for professional AV installations. It supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2 and Colour Space Conversion (CSC) with video down-conversion. The kit distributes HDMI, bi-directional IR, RS-232, and PoC over a single CAT cable up to 70m (4K up to 40m).

Features & Benefits

  • Advanced HDBaseT™ technology for video and audio over a single CAT cable
  • Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps with HDR
  • Video down-conversion on receiver output allows compatibility with displays supporting lower resolutions (4K 60Hz 4:2:0 or 1080p) without losing full UHD output on transmitter loop-out
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • HDMI loop-out on transmitter for local display or cascading
  • Supports VGA–WUXGA and 480i–4K resolutions
  • HDMI re-clocking on receiver to solve HDCP, compatibility, and handshaking issues
  • HDMI audio breakout to analogue L/R and coaxial digital outputs simultaneously
  • Bi-directional IR and RS-232 pass-through
  • Supports all digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X
  • Supplied with Blustream 5V IR receiver and emitter
  • Individual Extender Weight: 0.35kg (excluding accessories)
