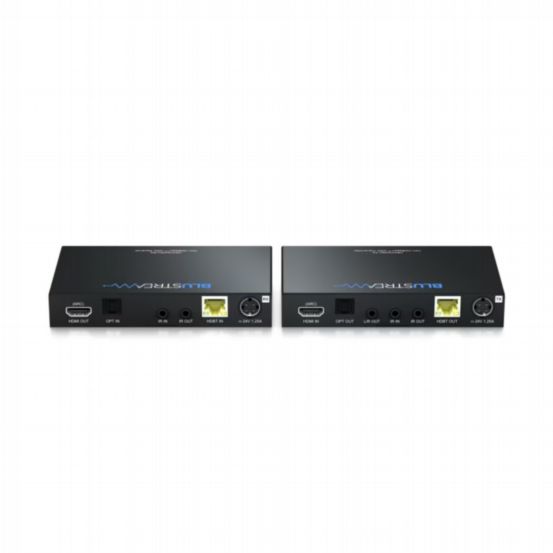

Blustream HEX70ARC-KIT HDBaseT ARC Extender Set - 70m
BU-HEX70ARC-KIT
The HEX70ARC-KIT is a 4K HDBaseT™ ARC extender set designed for professional custom installations. It delivers HDMI, ARC, Optical Audio Return, bi-directional IR, and bi-directional PoC (Power over Cable) over a single CAT cable up to 70m (40m for 4K 60Hz 4:2:0).
Features & Benefits
- Advanced HDBaseT™ technology with uncompressed video and audio and zero latency
- Extends HDMI 1080p up to 70m
- Extends 4K UHD video up to 40m
- Supports all standard resolutions (VGA–WUXGA, 480i–4K)
- Audio Return Channel (ARC) via HDMI or optical digital input
- HDMI loop-out on transmitter for local displays or cascading
- Supports Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Bi-directional IR pass-through (receiver and transmitter)
- Bi-directional PoC to power either end of the link
- HDCP 2.2 compliant with advanced EDID management
- Supplied with Blustream IR receiver and emitter
- Power Supply: 24V/1.25A DC, 4-pin DIN
- Box Dimensions (W x D x H): 248 x 151 x 103mm
