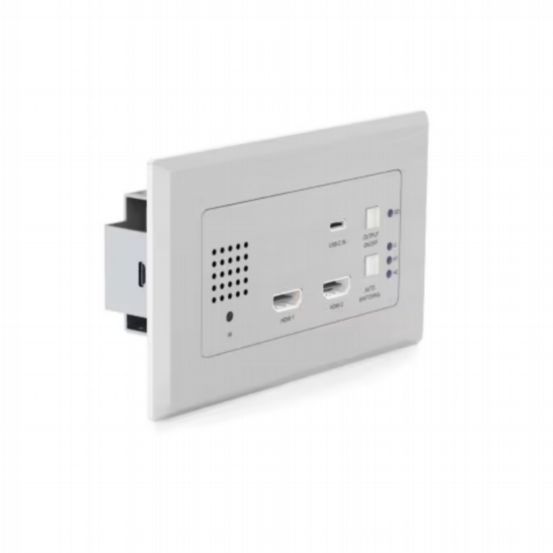

Blustream HEX31WP-TX 2x HDMI & 1x USB-C Wall Plate HDBaseT Transmitter

Blustream
Blustream HEX31WP-TX 2x HDMI & 1x USB-C Wall Plate HDBaseT Transmitter

BU-HEX31WP-TX

The Blustream HEX31WP-TX is a versatile HDBaseT™ wall plate transmitter that delivers 2 HDMI and 1 USB-C input over a single CAT cable to compatible receivers or matrices. Supporting 4K UHD up to 40m and 1080p up to 70m, it features manual or automatic source selection, CEC display control, bi-directional RS-232 and IR pass-through, and PoC/PoE support, making it ideal for professional AV installations in both UK and EU back boxes.

Features & Benefits

  • 2 HDMI and 1 USB-C inputs with manual or auto source selection
  • Extends 4K UHD video up to 40m and 1080p up to 70m over a single CAT cable using HDBaseT™ technology
  • Supports all major HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
  • Programmable ON/OFF button via IR, RS-232, or CEC for display control
  • Bi-directional RS-232 and IR pass-through for integration with HDBaseT™ receivers or matrices
  • Supports 12V–48V PoC from compatible Blustream HDBaseT™ devices
  • HDCP 2.2 compliant for full compatibility with modern displays
  • Magnetic faceplate for UK and EU back box compatibility
  • Local 12V DC power input or powered via compatible Blustream HDBaseT™ products
  • Compact wall plate design suitable for video distribution in classrooms, boardrooms, and multi-zone AV systems
