Blustream

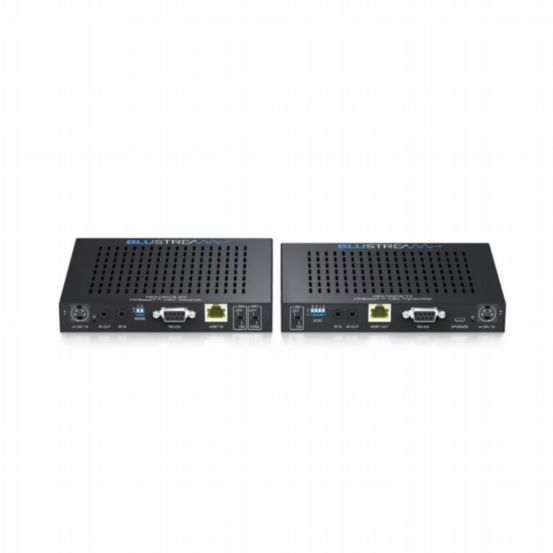

Blustream HEX150CS-KIT HDBaseT CSC Extender Set - 150m
BU-HEX150CS-KIT
The HEX150CS-KIT is a Platinum Range HDBaseT™ CSC extender set designed for high-performance, long-reach HDMI installations. It supports HDMI 2.0 4K 60Hz 4:4:4 with HDCP 2.2, and features advanced Colour Space Conversion (CSC) with video down-conversion, allowing integration with displays that support lower resolutions without losing full UHD quality on other outputs.
The kit distributes HDMI, ARC, bi-directional IR, RS-232, and Ethernet over a single CAT cable up to 150m, with PoC (Power over Cable) support.
Features & Benefits
- Advanced HDBaseT™ technology for video and audio distribution over a single CAT cable
- Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Video down-conversion on outputs to support displays with lower resolution (4K 60Hz 4:2:0 or 1080p)
- Supports 4K 60Hz 4:4:4 UHD video up to 100m
- Extends HDMI 1080p video up to 150m (long-reach mode)
- HDMI loop-out on transmitter for cascading or local display
- Supports VGA–WUXGA and 480i–4K resolutions
- HDMI re-clocking on the receiver to resolve HDCP, EDID, and handshaking issues
- Supports ARC from display via HDMI or optical digital input
- Audio return via HDMI, optical, and analogue L/R outputs (analogue 2ch PCM only)
- Supports Dolby TrueHD, Atmos, DTS-HD Master Audio
- Bi-directional 10/100BaseT Ethernet pass-through
- Bi-directional IR and RS-232 pass-through
- Supplied with Blustream 5V IR receiver and emitter
- Bi-directional PoC to power either transmitter or receiver
- Casing Dimensions: TX – 156 x 123 x 23mm; RX – 148 x 134 x 22mm
- Dimensions Including Connections: TX – 156 x 135 x 23mm; RX – 148 x 153 x 22mm
