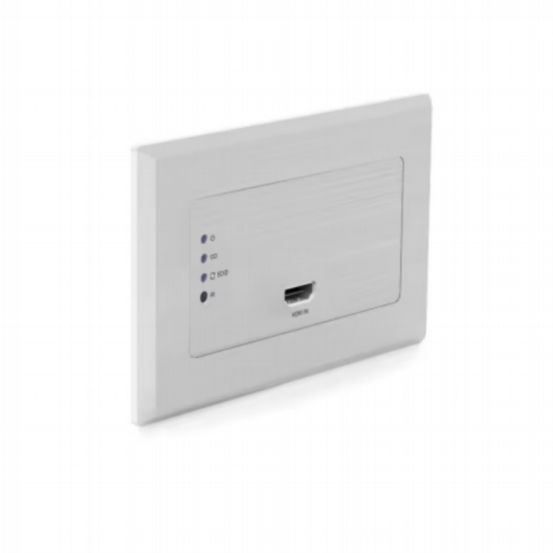

Blustream HEX11WPW-TX HDMI Wall Plate HDBaseT Transmitter
BU-HEX11WPW-TX
The HEX11WPW-TX is a white wall plate HDBaseT™ transmitter designed for extending HDMI signals up to 70m at 1080p and 40m at 4K 60Hz 4:2:0. It is compatible with all Blustream HDBaseT™ receivers and matrix solutions, and can be powered locally or via PoC from compatible Blustream devices. Its compact form factor and UK/EU backbox compatibility make it ideal for clean, discreet AV installations.
Features & Benefits
- Advanced HDBaseT™ technology distributing video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI 1080p video up to 70m
- Smart EDID function automatically limits EDID within HDBaseT™ specification for improved compatibility
- Supports all HDMI audio formats including Dolby TrueHD, Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Supports 12V–48V PoC from compatible Blustream receivers/matrix products
- Bi-directional RS-232 pass-through
- IR pass-through to compatible HDBaseT™ device
- Compatible with all Blustream HDBaseT™ receivers and matrix products
- White magnetic faceplate for both UK & EU backbox compatibility
- Video Input: 1 x HDMI Type A, 19-pin, female
- Video Output: 1 x HDBaseT™ RJ45 connector
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- IR Input: 1 x 3-pin Phoenix connector
- Local Power Input: 1 x 2-pin Phoenix connector
- Module Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
- Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
- Cut Out Dimensions (W x H x D): 87mm x 49mm x 39mm
- Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
- Backbox Mounting Depth: 40mm minimum, 47mm recommended (UK or EU double gang)
- Power Supply: 12V/1A DC
