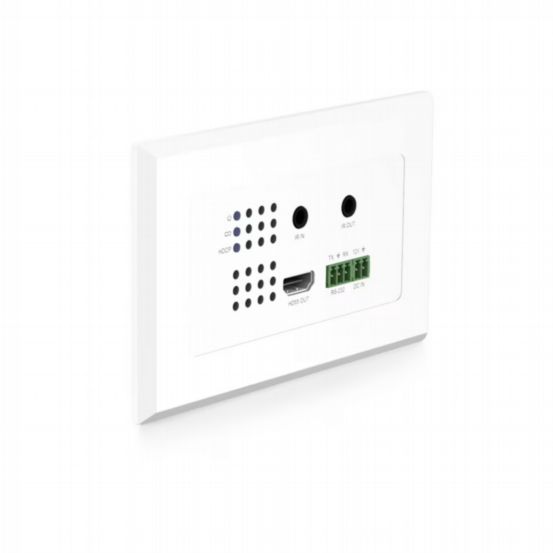

Blustream HEX11WPW-RX HDMI Wall Plate HDBaseT Receiver
BU-HEX11WPW-RX
The HEX11WPW-RX is a wall plate HDBaseT™ receiver designed to extend HDMI signals over a single CAT cable. It supports 4K UHD video up to 40m and 1080p up to 70m, providing a sleek and compact solution for residential or commercial AV installations. The unit is compatible with all Blustream HDBaseT™ transmitters and matrix products, and it can be powered locally or via PoC from a compatible transmitter or matrix.
Features & Benefits
- Advanced HDBaseT™ technology for video and audio distribution over a single CAT cable
- Supports 4K UHD video up to 40m (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI 1080p video up to 70m
- Supports all HDMI audio formats including Dolby TrueHD, Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Supports CEC and RS-232 pass-through
- Bi-directional IR pass-through to compatible HDBaseT™ devices
- Supports 12V–48V PoC from compatible Blustream HDBaseT™ transmitters or matrix products
- Compatible with UK & EU backboxes via magnetic faceplate surround
- Video Input: 1 x HDBaseT™ RJ45 connector
- Video Output: 1 x HDMI Type A, 19-pin, female
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- IR Input: 1 x 3.5mm stereo jack
- IR Output: 1 x 3.5mm mono jack
- Local Power Input: 1 x 2-pin Phoenix connector
- Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
- Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
- Minimum Backbox Depth: 40mm (backbox not supplied)
- Power Supply: 12V/1A DC
