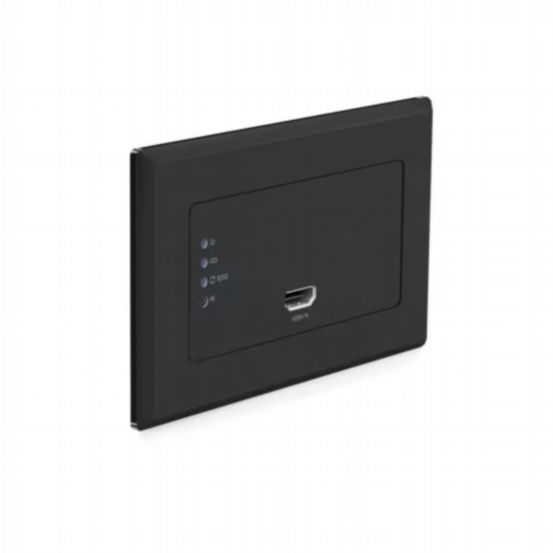

Blustream HEX11WPB-TX HDMI Wall Plate HDBaseT Transmitter

BU-HEX11WPB-TX

The HEX11WPB-TX is a wall plate HDBaseT™ transmitter designed to extend HDMI signals over a single CAT cable. It supports 4K UHD video up to 40m and 1080p up to 70m, making it ideal for discreet installations where HDMI distribution is required. Compatible with all Blustream HDBaseT™ receivers and matrix products, it can be powered locally or via PoC from a compatible receiver or matrix.

Features & Benefits

  • Advanced HDBaseT™ technology for video and audio distribution over a single CAT cable
  • Supports 4K UHD video up to 40m (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI 1080p video up to 70m
  • Supports all HDMI audio formats including Dolby TrueHD, Atmos, Dolby Digital Plus, DTS-HD Master Audio
  • Supports 12V–48V PoC from compatible Blustream HDBaseT™ receivers or matrix products
  • Bi-directional RS-232 pass-through
  • IR pass-through to compatible HDBaseT™ receiver or matrix devices
  • Compatible with UK & EU backboxes via magnetic faceplate surround
  • Video Input: 1 x HDMI Type A, 19-pin, female
  • Video Output: 1 x HDBaseT™ RJ45 connector
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input: 1 x 3-pin Phoenix connector
  • Local Power Input: 1 x 2-pin Phoenix connector
  • Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
  • Casing Dimensions with Faceplate (W x H x D): 146mm x 86mm x 44mm
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • Backbox House Unit Dimensions: 78mm x 49mm x 39mm (part of unit housed inside backbox)
  • Minimum Backbox Depth: 40mm (backbox not supplied)
  • Power Supply: 12V/1A DC
