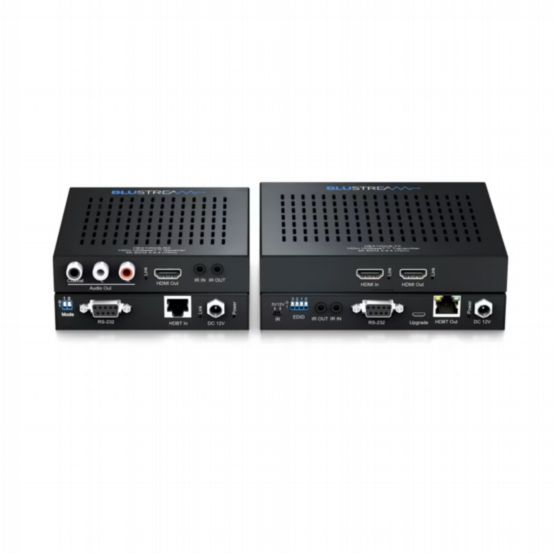

Blustream HEX100CS-KIT HDBaseT CSC Extender Kit - 100m

Blustream
Blustream HEX100CS-KIT HDBaseT CSC Extender Kit - 100m

BU-HEX100CS-KIT

The HEX100CS-KIT is a professional HDBaseT™ CSC extender set designed for high-performance AV distribution. It supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2 and Colour Space Conversion (CSC) with video down-conversion. The kit extends HDMI, bi-directional IR, RS-232, and PoC over a single CAT cable up to 100m (4K up to 70m).

The transmitter features a HDMI loop-out for local display or cascading, while the receiver offers simultaneous analogue stereo and coaxial digital audio breakout.

Features & Benefits

  • HDBaseT™ technology for video, audio, and control distribution over a single CAT cable
  • Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps with HDR
  • Video down-conversion on receiver output for compatibility with lower-resolution displays (4K 60Hz 4:2:0 or 1080p) without losing full UHD output on transmitter loop-out
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m
  • Extends HDMI 1080p video up to 100m
  • HDMI loop-out on transmitter for cascading or local display
  • Supports VGA–WUXGA and 480i–4K resolutions
  • HDMI re-clocking on receiver to address HDCP, compatibility, and handshaking issues
  • HDMI audio breakout to analogue L/R and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 and IR pass-through
  • Supports all digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X
  • Supplied with Blustream 5V IR receiver and emitter
  • Individual Extender Weight: 0.35kg (excluding accessories)
