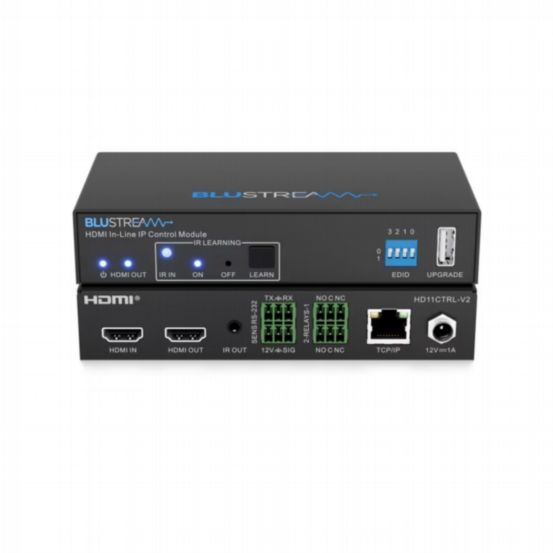

Blustream HD11CTRL-V2 HDMI In-Line IP Control Module

BU-HD11CTRL-V2

The HD11CTRL-V2 is an advanced single-zone HDMI in-line control module that offers automated display management with multiple control options including RS-232, IR, IP commands, and HDMI signal sensing. Its built-in web-GUI provides simple configuration and advanced management for macros, 3rd party command distribution, and automated processes.

This module also addresses common 4K HDMI issues, such as EDID conflicts, HDCP 2.2 compliance, clock stretching, and handshaking, ensuring reliable signal distribution.

Features & Benefits

  • Automated in-line HDMI control module supporting up to 10 macros, with 10 commands per macro
  • Supports HDMI 2.0 (18Gbps) with HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio
  • Smart-Scale technology converts 4K input to 1080p output (4:2:2 not supported)
  • Resolves HDMI EDID, HDCP, compatibility, and handshaking issues
  • Automatic display control via CEC, RS-232, IR, or IP
  • IR learning supports up to 30 commands
  • Relay control for third-party devices such as projector screens
  • Signal sense input for sensors or switches
  • HDCP 2.2 compliant with advanced EDID management
  • In-built web-GUI for configuration, macros, and command management
  • Video Input: 1 x HDMI Type A, 19-pin, female
  • Video Output: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • TCP/IP Control Port: 1 x RJ45, female
  • IR Output: 1 x 3.5mm mono jack
  • Relay Control: 2 x 3-pin Phoenix connector
  • Sensor Input: 1 x 3-pin Phoenix connector
  • EDID Selection: 4-pin DIP Switch
  • Firmware / Product Upgrade: 1 x USB Type-A, female
  • Dimensions (W x H x D): 145mm x 28mm x 84mm
  • Power Supply: 12V/1A DC
