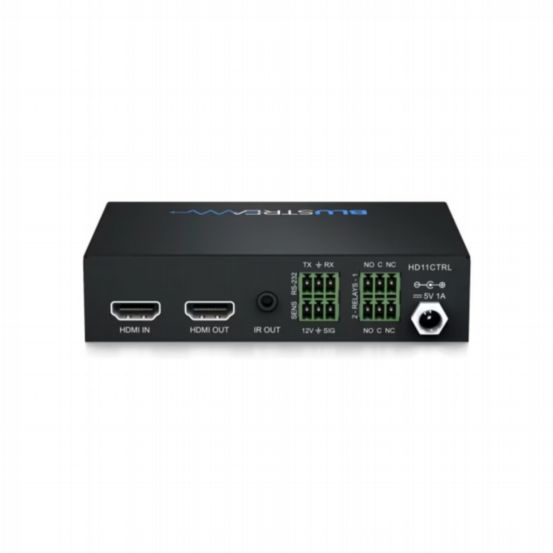

Blustream HD11CTRL HDMI In-Line Controller with IR, RS-232, CEC, Signal Sensing & 12V Trigger Outputs

Blustream
Blustream HD11CTRL HDMI In-Line Controller with IR, RS-232, CEC, Signal Sensing & 12V Trigger Outputs

BU-HD11CTRL

The HD11CTRL is an automated in-line HDMI control module designed to simplify and automate AV system management. It provides display on/off control, relay triggering, and advanced HDMI signal management to resolve common 4K HDMI distribution issues such as EDID conflicts, HDCP 2.2 compatibility, clock stretching, and handshaking.

Features & Benefits

  • Automated HDMI in-line control module
  • Supports HDMI 2.0 (18Gbps) with HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4, 8-bit
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio
  • Resolves HDMI EDID, HDCP, compatibility, and handshaking issues
  • Automatic display On/Off control via CEC, RS-232, or IR
  • Relay control for third-party devices such as motorised screens or projectors
  • Contact closure input for sensors or switches for automated triggering
  • HDCP 2.2 compliant with advanced EDID management
  • Video Input: 1 x HDMI Type A, 19-pin, female
  • Video Output: 1 x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Output: 1 x 3.5mm mono jack
  • Relay Control: 2 x 3-pin Phoenix connector
  • Sensor Input: 1 x 3-pin Phoenix connector
  • EDID: 4-pin DIP switch
  • Firmware / Product Upgrade: 1 x USB Type-A female
  • Dimensions (W x H x D): 120mm x 28mm x 84mm
  • Power Supply: 5V/1A DC
