Blustream

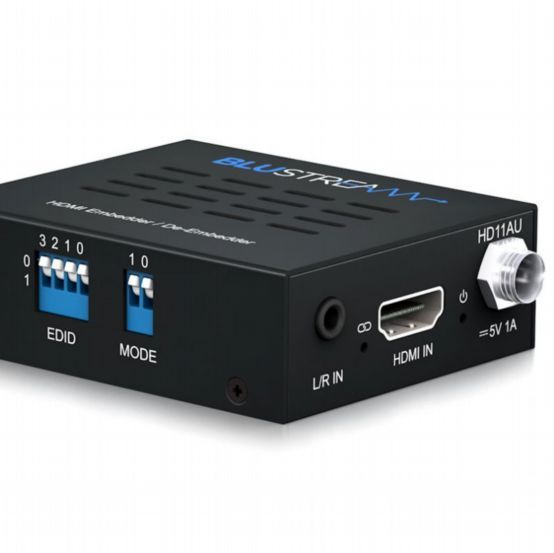

Blustream HD11AU HDMI Audio Embedder & De-Embedder
BU-HD11AU
The HD11AU is a versatile HDMI solution that allows you to embed or de-embed audio within the HDMI signal path. Ideal for AV installations, it supports breakout of up to 7.1ch audio and seamless integration between sources and displays.
Features & Benefits
- Configurable as either HDMI audio de-embedder or audio embedder
- De-embeds HDMI audio to analogue L/R and coaxial digital outputs concurrently
- Embeds analogue L/R audio input onto the HDMI output
- Can extract audio with or without a connected display – acts as an end-sink
- Supports 4K UHD video (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all standard video resolutions, including VGA-WUXGA and 480i–4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- CEC bypass support (Consumer Electronics Control)
- Advanced EDID management for seamless handshaking between HDMI equipment
- Audio Input: 1 x Analogue L/R (3.5mm stereo jack)
- Audio Output: 1 x RCA (S/PDIF), 1 x Analogue L/R (3.5mm stereo jack)
- Video Input: 1 x HDMI Type A
- Video Output: 1 x HDMI Type A
- Dimensions (W x D x H): 60 x 80 x 25mm (with connections)
- Dimensions (W x D x H): 60 x 70 x 25mm (without connections)
- Product Weight: 0.15kg (excluding accessories)
- Power Supply: 5V/1A DC, screw type connector
