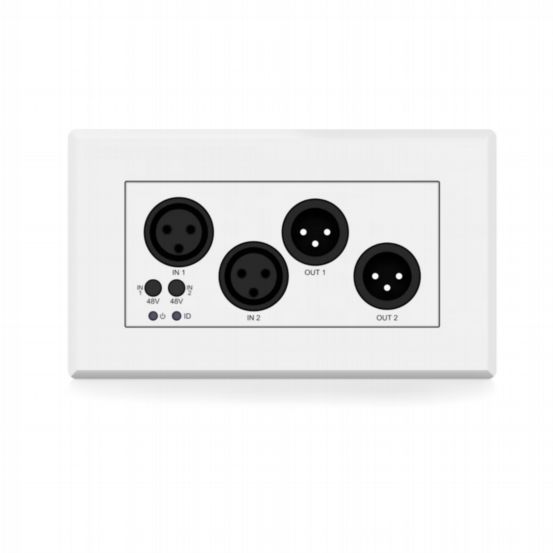

Blustream XLR Dante® Audio Wall Plate - White

Blustream
Blustream XLR Dante® Audio Wall Plate - White

BU-DA22XLR-WP-EU-V2

The Blustream DA22XLR‑WP‑V2 is a versatile Dante® audio wall plate designed to convert analogue audio to and from a Dante® network, featuring two balanced/unbalanced/MIC inputs with switchable 48V phantom power, two balanced/unbalanced outputs, AES67 support, PoE or 12V powering options and a magnetic faceplate compatible with UK and EU backboxes, making it an ideal BYOD interface for seamless integration into professional networked audio systems.

Features & Benefits

  • Converts two balanced/unbalanced/MIC audio inputs to Dante® audio channels
  • Converts two Dante® audio channels to balanced/unbalanced analogue outputs
  • Switchable 48V phantom power for each MIC XLR input
  • Adjustable MIC/line sensitivity from +24 dBu to –28 dBV per input
  • Adjustable line output gain from +20 dBu to –28 dBV per channel
  • Supports 44.1, 48 and 96 kHz sample rates at 24‑bit
  • Dante® latency configurable to 1, 2 or 5 ms via Dante Controller
  • Supports AES67 RTP audio transport for wider interoperability
  • Powered via Class 0 IEEE 802.3af PoE or included 12V DC adapter
  • Magnetic faceplate design compatible with UK and EU double‑gang backboxes
