Blustream

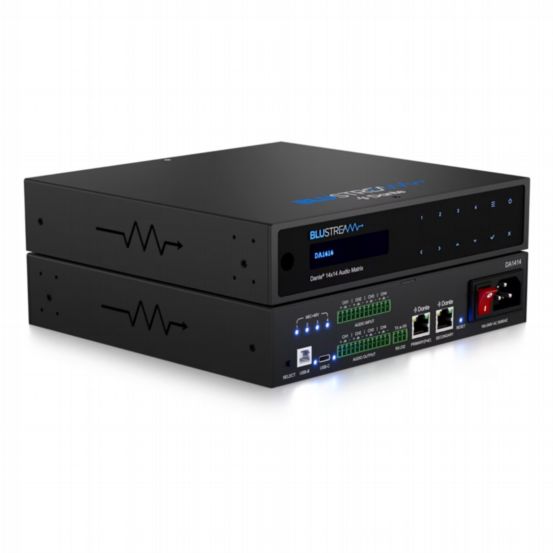

Blustream 14×14 Audio Matrix with Dante®, Analogue & USB Connectivity
BU-DA1414
The Blustream DA1414 is a powerful PoE+‑powered 14×14 audio matrix designed for flexible multi‑zone audio distribution, featuring Dante®/AES67, analogue and USB audio connectivity, advanced DSP processing with per‑channel EQ and filtering, selectable 48V phantom power, API‑based Dante routing, and comprehensive control options, making it a versatile and cost‑effective solution for commercial and residential audio systems requiring seamless routing, processing and integration of diverse audio sources.
Features & Benefits
- 14×14 audio matrix with Dante®/AES67, analogue and USB audio connectivity
- Independent mono channel routing for full 14×14 switching flexibility
- Balanced/unbalanced analogue inputs with selectable 48V phantom power
- USB‑C and USB‑B audio inputs supporting USB Audio Class 2.0
- Advanced DSP with volume, balance and 8‑band parametric EQ per channel
- Supports 48 kHz 24‑bit A/D and D/A conversion plus 44.1/48/96 kHz at 24‑bit
- Configurable Dante® latency from 2–10 ms via Dante Controller
- Dual Dante LAN ports for network redundancy and AES67 support
- Powered via PoE+ (Class 4) or internal 110–250V AC supply
- Control via front panel, RS‑232, TCP/IP and web‑GUI with 1U rack‑mount design
