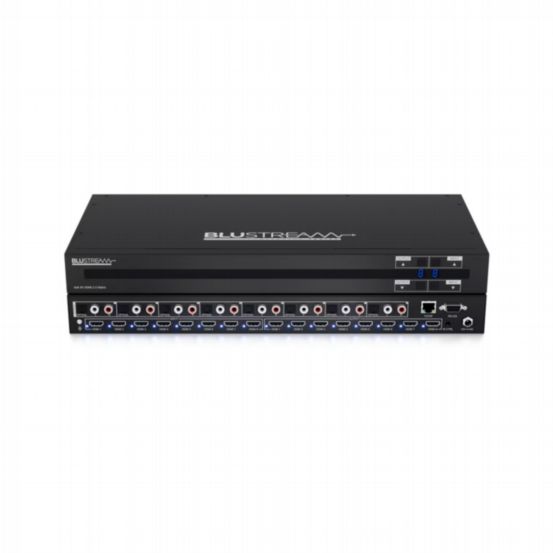

Blustream CMX88CS Contractor 8x8 4K HDMI 2.0 Matrix
BU-CMX88CS
The CMX88CS is a professional 8x8 HDMI 2.0 matrix designed for custom AV installations, offering high-performance video routing with 4K UHD 60Hz 4:4:4 support and HDR compatibility. It allows eight HDMI sources to be independently routed to eight displays, with audio breakout, advanced EDID management, and multiple control options including web GUI.
Features & Benefits
- 8 x HDMI inputs independently routable to 8 x HDMI outputs
- Supports HDMI 2.0 18Gbps, 4K UHD 60Hz 4:4:4, HDR
- Independent video down-conversion on all HDMI outputs for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports all industry standard video resolutions (VGA-WUXGA, 480i-4K)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Audio breakout to associated output analogue L/R audio and optical digital outputs concurrently
- Web interface module for matrix control and configuration
- Control via front panel, IR, RS-232, and TCP/IP
- Video Input: 8 x HDMI Type A, 19-pin, female
- Video Output: 8 x HDMI Type A, 19-pin, female
- Audio Output: 8 x RCA (S/PDIF), 8 x Analogue RCA L/R
- RS-232 Serial Port: 1 x DB-9, female
- TCP/IP Control: 1 x RJ45, female
- IR Input Ports: 1 x 3.5mm stereo jack
- Casing Dimensions (W x D x H): 441mm x 226mm x 45mm
- Dimensions Including Connections (W x D x H): 441mm x 234mm x 51mm
