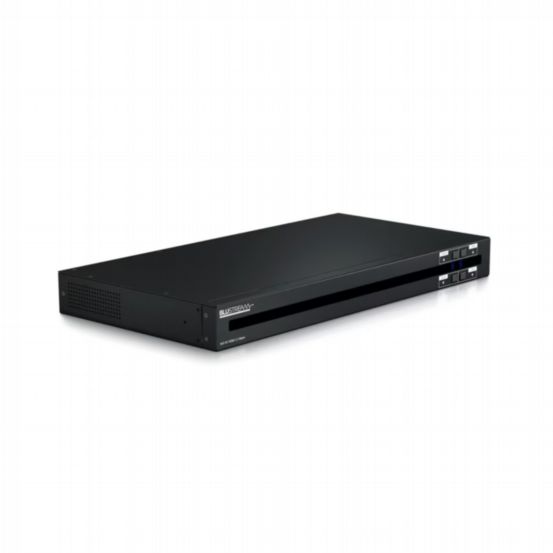

Blustream CMX88AB Contractor 8x8 HDMI 2.0 Matrix with Audio Breakout
BU-CMX88AB
The CMX88AB is a high-performance 8x8 HDMI 2.0 matrix designed for professional custom AV installations. It supports 4K UHD 60Hz 4:4:4 video at 18Gbps and includes advanced audio breakout, EDID management, and HDCP 2.2 compliance, making it ideal for multi-zone commercial and residential AV systems.
Features & Benefits
- 8 x HDMI inputs independently routable to 8 x HDMI outputs
- Supports HDMI 2.0 18Gbps, HDR, and full 4K UHD 60Hz 4:4:4
- Video down-conversion on outputs for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports all industry standard video resolutions (VGA-WUXGA, 480i-4K)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
- Control via front panel, TCP/IP, IR, and RS-232
- Supplied with Blustream 5V IR receivers and emitters
- Video Input: 8 x HDMI Type A, 19-pin, female, locking
- Video Output: 8 x HDMI Type A, 19-pin, female, locking
- Audio Output: 8 x Optical (S/PDIF), 8 x Analogue L/R (3.5mm stereo jack)
- TCP/IP Control: 1 x RJ45, female
- RS-232 Serial Port: DB-9, female
- IR Input Ports: 7 x 3.5mm stereo jack
- IR Output Ports: 8 x 3.5mm mono jack
- Rack Mountable: 1U, rack ears included
- Casing Dimensions (W x D x H): 440mm x 225mm x 44mm
- Dimensions Including Connections (W x D x H): 440mm x 231mm x 50mm
