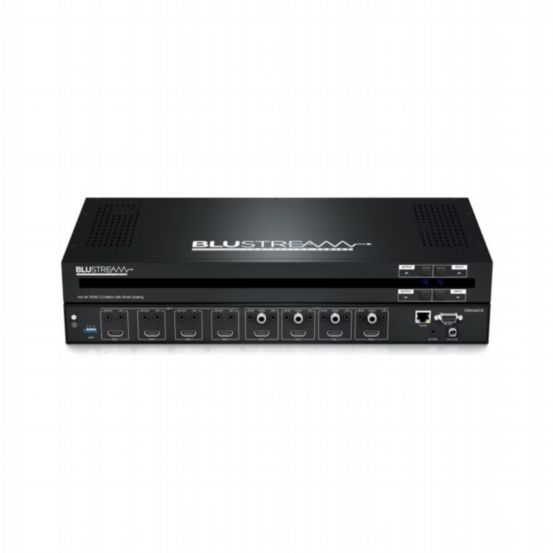

Blustream CMX44CS 4x4 4K HDMI 2.0 Matrix
BU-CMX44CS
The CMX44CS is a high-performance 4x4 HDMI 2.0 matrix switch designed for professional AV installations. It allows four HDMI sources to be independently routed to four HDMI outputs, supporting all HDMI resolutions up to 4K UHD 60Hz 4:4:4 with automatic video down-conversion for displays that support lower resolutions. HDCP 2.2 and HDR are fully supported, making it ideal for residential, commercial, and multi-zone installations requiring flexible 4K video and audio distribution.
Features & Benefits
- 4 x HDMI inputs independently routable to 4 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification, including HDR
- Video down-conversion for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
- HDMI audio breakout to associated analogue L/R and coaxial digital outputs concurrently
- IR routing for source control
- Advanced EDID management and HDCP 2.2 compliance
- Supplied with Blustream 5V IR receivers and emitters
- 1U rack-mountable design, mounting kit included
- Video Input: 4 x HDMI Type A, 19-pin, female, locking
- Video Output: 4 x HDMI Type A, 19-pin, female, locking
- Audio Input: 4 x Analogue L/R (3.5mm stereo jack)
- Audio Output: 4 x RCA (S/PDIF), 4 x Analogue L/R (3.5mm stereo jack)
- TCP/IP Control: 1 x RJ45, female
- TCP/IP Control: 1 x RJ45, female
- RS-232 Serial Port: DB-9, female
- IR Input Ports: 5 x 3.5mm stereo jack
- IR Output Ports: 4 x 3.5mm mono jack
- Casing Dimensions (W x D x H): 440mm x 225mm x 44mm
- Dimensions Including Connections (W x D x H): 440mm x 231mm x 50mm
