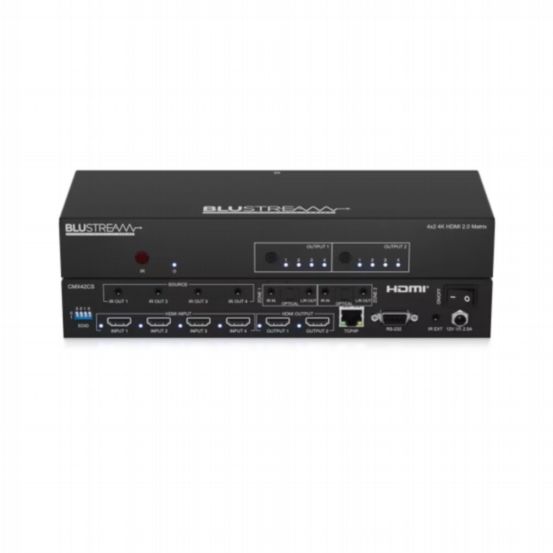

Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix
BU-CMX42CS
The CMX42CS is a compact, high-performance 4x2 HDMI 2.0 matrix switch, designed for professional AV installations requiring reliable 4K UHD video distribution and advanced integration features. It supports full HDMI 2.0 and HDCP 2.2 compliance, allowing four HDMI sources to be independently routed to two HDMI outputs. All video resolutions up to 4K UHD 60Hz 4:4:4 (18Gbps) are supported, including HDR formats.
Features & Benefits
- 4 HDMI inputs independently routable to 2 HDMI outputs
- Supports HDMI 2.0 18Gbps specification, including HDR
- Video down-conversion on outputs for displays limited to lower resolutions (4K 60Hz 4:2:0 or 1080p)
- Supports all industry-standard video resolutions (VGA-WUXGA, 480i-4K)
- Supports all HDMI audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
- HDMI audio breakout to analogue L/R and optical S/PDIF outputs concurrently
- Integrated IR routing for source control
- Advanced EDID management and HDCP 2.2 compliance
- Control via front panel, TCP/IP, IR, and RS-232
- Supplied with Blustream 5V IR receivers and emitters
- Video Input: 4 x HDMI Type A, 19-pin, female, locking
- Video Output: 2 x HDMI Type A, 19-pin, female, locking
- Audio Output: 2 x Optical (S/PDIF), 2 x Analogue L/R (3.5mm stereo jack)
- TCP/IP Control: 1 x RJ45, female
- RS-232 Serial Port: 1 x DB-9, female
- IR Input Ports: 3 x 3.5mm stereo jack
- IR Output Ports: 4 x 3.5mm mono jack
- Dimensions (W x D x H): 255mm x 104mm x 40mm
